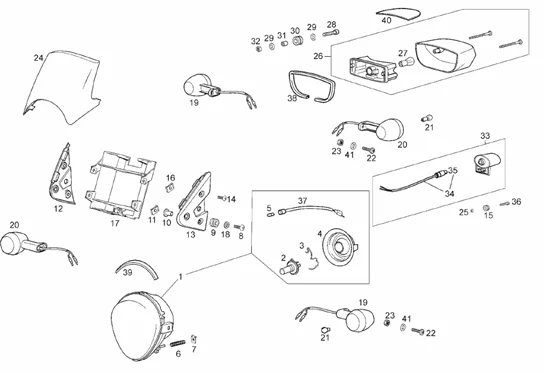

Vues éclatées : 07B FEU DE PLAQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1111/Mulhacen_125_4T_E3_2007-2009_(EMEA)_07B.png)
1 |
00N01000011 - PHARE AVANT More informationQuantity required : 1 |
||||||
|
2 |
862412 - LAMPE (OU AMPOULE) More informationQuantity required : 1 |
||||||
|
3 |
862415 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
862414 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/9/img/64379.jpg)
5 |
00H01003131 - TUBE PHARE More informationQuantity required : 1 |
||||||
|
6 |
00G02301501 - RESSORT PHARE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
7 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/4/img/64544.jpg)
8 |
00H01503701 - VIS M6X25 More informationQuantity required : 1 |
||||||
|
9 |
00D01600941 - SILENBLOC More informationQuantity required : 1 |
||||||
|
10 |
00N01001821 - CASQ.DT.SOPTE.FARO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
12 |
864806 - SOPTE.LAT.FARO.DLNT.DR.MUL125 CAFE More informationQuantity required : 1 |
||||||
|
13 |
864807 - SOPTE.LAT.FARO.DLNT.IZ.MUL125 CAFE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
14 |
00H01501701 - BOULON BOMBEE ALLEN 6M100X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/7/6/img/154576.JPG)
15 |
2B005447 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
17 |
864805 - SOPTE.FARO MUL125 CAFE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
18 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/7/img/69987.jpg)
19 |
FLASHER- FRONT LEFT/REAR RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863009- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/8/6/img/69986.jpg)
20 |
FLASHER- FRONT RIGHT/REAR LEFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863008- More informationQuantity required : 1 |
||||||
|
21 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
22 |
AP8224470 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
23 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
24 |
86401800WN45 - R-CARCASA FARO NGR.LENT.MUL.CAFE More informationQuantity required : 1 |
||||||
|
24 |
86401800WR2 - CARCASA FARO ROJ.DRAG.MUL A.NIETO More informationQuantity required : 1 |
||||||
|
25 |
00026005000 - ECROU HEXAG.A/BRIDE 5M80 D6923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/3/img/64383.jpg)
26 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2009 -00H01006321- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/6/6/img/64366.jpg)
27 |
BULB 12V 21/5W "PIAGGIO GENUINE PART" COMMON TO THE RANGE -00H01000371- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/4/img/63644.jpg)
28 |
00004053500 - VIS A TETE ALLEN 5M80X50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/0/img/64840.jpg)
29 |
00H03800722 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/5/1/img/65051.jpg)
30 |
SILENTBLOC FOR TAIL LIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H06800461- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/6/img/64376.jpg)
31 |
SPACER- FOR STOP LIGHT SWITCH/REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT/APRILIA 50 RS -00H01002821- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/9/img/63589.jpg)
32 |
00000023050 - ECROU More informationQuantity required : 1 |
||||||
|
33 |
00G05701471 - TUBE PHARES More informationQuantity required : 1 |
||||||
|
34 |
00G02300581 - FEU REGISTRE More informationQuantity required : 1 |
||||||
|
35 |
00H01003131 - TUBE PHARE More informationQuantity required : 1 |
||||||
|
36 |
00004251600 - VIS TETE CREUSE 5M100X16 More informationQuantity required : 1 |
||||||
|
37 |
862413 - CABLE More informationQuantity required : 1 |
||||||
|
38 |
00A01500352 - ENJOLIVEUR SUP.NOIR AVANT CADR More informationQuantity required : 1 |
||||||
|
39 |
00H05700101 - BUTEE PHARE More informationQuantity required : 1 |
||||||
|
40 |
864585 - ARRET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
41 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
