Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

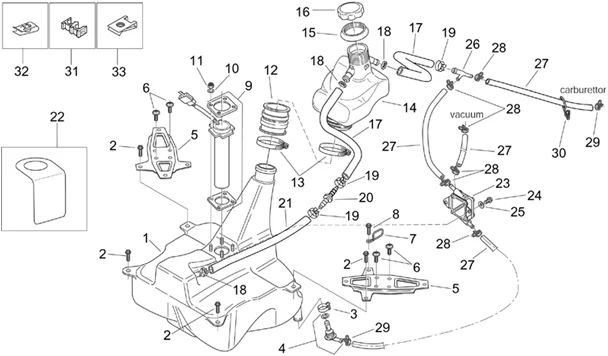

Chassis : 28.23 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_28.23.PNG)
1 |
AP8139872 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
|
2 |
AP8152345 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
3 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/6/img/71216.jpg)
4 |
FUEL TANK UNION "PIAGGIO GENUINE PART" APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJITO -AP8104071- More informationQuantity required : 1 |
||||||
|
5 |
AP8234156 - ETRIER REP-PIED; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 4 |
||||||
|
7 |
AP8121856 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
|
9 |
AP8224079 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
10 |
AP8150158 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
11 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 4 |
||||||
|
12 |
AP8144216 - MANCHON; More informationQuantity required : 1 |
||||||
|
13 |
AP8102700 - COLLIER More informationQuantity required : 2 |
||||||
|
15 |
AP8139962 - BAGUE GOULOT ESSENCE; More informationQuantity required : 1 |
||||||
|
16 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
17 |
AP8144283 - TUYAU PREFORME More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/6/img/71206.jpg)
18 |
AP8102903 - COLLIER CLIC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
19 |
AP8101586 - COLLIER CLIC More informationQuantity required : 3 |
||||||
|
20 |
AP8104129 - RACCORD A DEUX VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/3/img/71423.jpg)
21 |
AP8120956 - BREATHER PIPE More informationQuantity required : 1 |
||||||
|
22 |
AP8148598 - PROTEC.POMPE ESS.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/6/2/img/45162.jpg)
23 |
FUEL PUMP "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO, LEONARDO ( ROTAX ENGINE), 125 MOJITO 1999>2001 -AP8102408- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
24 |
AP8152272 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.JPG)
25 |
AP8150014 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
27 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
28 |
AP8101595 - COLLIER More informationQuantity required : 6 |
||||||
|
29 |
AP8102377 - COLLIER More informationQuantity required : 2 |
||||||
|
30 |
AP8221172 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
31 |
AP8201808 - GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
32 |
AP8201763 - CLIP POUR VIS TARAUD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
33 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
