Vehicle Exploded View - APRILIA MOJITO 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

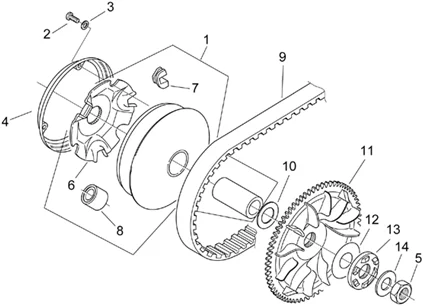

Moteur : 29.49 GROUPE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/256/Mojito_125_1999-2001_29.49.PNG)
1 |
82522R - DEMI POULIE EX 478153 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
2 |
015996 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
3 |
006964 - RONDELLE ELAST. S00696400 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/5/img/66505.jpg)
5 |
436789 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
7 |
VARIATOR SLIDING GUIDE "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X9 2003>, X-EVO 2007>, FLY 2005>, VESPA LX 2005>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005> -4348555- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/7/img/66757.jpg)
8 |
VARIATOR ROLLER SET "PIAGGIO GENUINE PART" 125 HEXAGON LX4, VESPA ET4, LIBERTY, SFERA/APRILIA 125 MOJITO -4878225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/1/5/img/68515.jpg)
9 |
BELT "PIAGGIO GENUINE PART" PIAGGIO 125 HEXAGON LX4 1997>2005, LIBERTY 1998>2005/APRILIA 125 HABANA, MOJITO 1999>2001 -825059- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/9/img/68529.jpg)
11 |
DRIVING HALF PULLEY "PIAGGIO GENUINE PART" 125 HEXAGON LX4, VESPA ET4, SFERA, LIBERTY 125 1998>1999/APRILIA 125 MOJITO -82523R- More informationQuantity required : 1 |
||||||
|
13 |
KICK STARTER PINION "PIAGGIO GENUINE PART" 125 LIBERTY, SFERA, EXAGON, VESPA ET4/APRILIA 125 MOJITO -435027- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/2/img/66502.jpg)
14 |
436698 - RESSORT More informationQuantity required : 1 |
