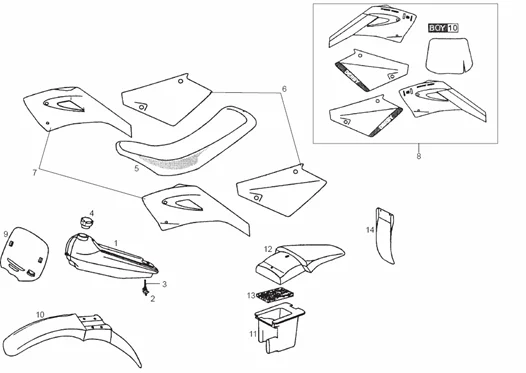

Châssis - parties plastiques - carrosseries : 3 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1114/MINIMOTO_Dirt_Boy_-_Dirt_Kid_3.png)
1 |
00L00400011 - DEPOSITO GASOLINA More informationQuantity required : 1 |
||||||
|
2 |
00L00400181 - CTO.GRIFO GASOLINA More informationQuantity required : 1 |
||||||
|
3 |
00L00400501 - ANILLO GRIFO GASOLINA More informationQuantity required : 1 |
||||||
|
4 |
00L00400131 - CTO.TAPON GASOLINA More informationQuantity required : 1 |
||||||
|
5 |
00L00600011 - CTO.SILLIN More informationQuantity required : 1 |
||||||
|
6 |
00L00500991 - CTO.KIT TAPAS LAT.BL.MINIM More informationQuantity required : 1 |
||||||
|
7 |
00L04600991 - CTO.KIT TAPAS DT.NEGR.MINIM More informationQuantity required : 1 |
||||||
|
7 |
00L04600992 - CTO.KIT TAPAS DTR.ROJO MINIM More informationQuantity required : 1 |
||||||
|
8 |
00L02200011 - CTO.JUEGO CALCAS More informationQuantity required : 1 |
||||||
|
8 |
00L02201011 - CTO.KIT CALCAS More informationQuantity required : 1 |
||||||
|
9 |
00L01500281 - PLACA FRONTAL More informationQuantity required : 1 |
||||||
|
9 |
00L01500282 - PLACA FRONTAL More informationQuantity required : 1 |
||||||
|
10 |
00L00700021 - GUARDABARROS DTRO. More informationQuantity required : 1 |
||||||
|
10 |
00L00700022 - GUARDABARROS DTRO. More informationQuantity required : 1 |
||||||
|
11 |
00L00500021 - CAJA FILTRO More informationQuantity required : 1 |
||||||
|
12 |
00L00700121 - GUARDABARROS TRAS. More informationQuantity required : 1 |
||||||
|
12 |
00L00700122 - GUARDABARROS TRAS. More informationQuantity required : 1 |
||||||
|
13 |
00L03200251 - FILTRO AIRE More informationQuantity required : 1 |
||||||
|
14 |
00L00700341 - SUPLMTO.GUARDAB.TRAS. More informationQuantity required : 1 |
