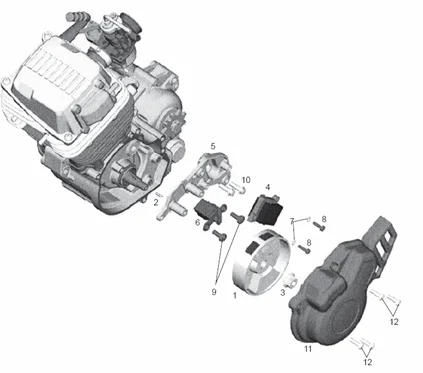

Moteur : 12 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1114/MINIMOTO_Dirt_Boy_-_Dirt_Kid_12.png)
1 |
840257 - K-ROTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
2 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
3 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519 More informationQuantity required : 1 |
||||||
|
4 |
840258 - K-ESTATOR More informationQuantity required : 1 |
||||||
|
5 |
840737 - K-SOPORTE More informationQuantity required : 1 |
||||||
|
6 |
584581 - K-PICK-UP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
7 |
006964 - RONDELLE ELAST. S00696400 More informationQuantity required : 1 |
||||||
|
8 |
709718 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
9 |
015558 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
10 |
031091 - VIS More informationQuantity required : 1 |
||||||
|
11 |
840304 - K-TAPA More informationQuantity required : 1 |
||||||
|
12 |
840548 - VIS More informationQuantity required : 1 |
