Vehicle Exploded View - APRILIA LEONARDO 150 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

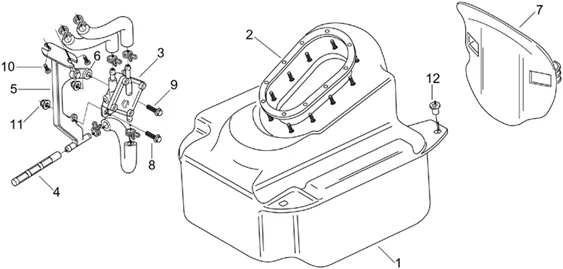

Chassis : 28.25 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/246/Leonardo_150_1996-1998_28.25.PNG)
1 |
AP8138153 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
|
2 |
AP8120917 - JOINT RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/6/2/img/45162.jpg)
3 |
FUEL PUMP "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO, LEONARDO ( ROTAX ENGINE), 125 MOJITO 1999>2001 -AP8102408- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/2/1/4/img/49214.jpg)
5 |
FUEL PUMP SUPPORT "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2004 -AP8138404- More informationQuantity required : 1 |
||||||
|
7 |
AP8138600 - PROTECTION CABL.HT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
9 |
AP8152280 - VIS BRIDE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
11 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
12 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
