Vehicle Exploded View - APRILIA LEONARDO 150 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

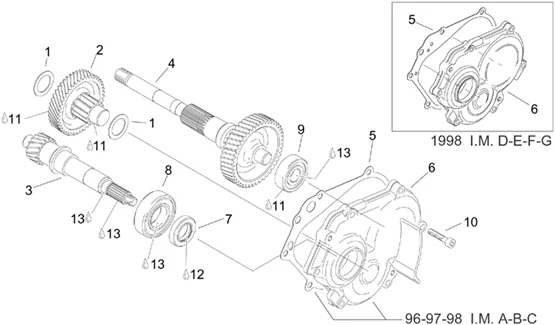

Moteur : 29.51 TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/246/Leonardo_150_1996-1998_29.51.PNG)
1 |
AP0944468 - RACLEUR More informationQuantity required : 2 |
||||||
|
2 |
AP0220325 - ARBRE INTERMEDIAIRE More informationQuantity required : 1 |
||||||
|
2 |
AP0220327 - ARBRE INTERMEDIAIRE More informationQuantity required : 1 |
||||||
|
3 |
AP0220342 - ARBRE DE TRANSMISSION More informationQuantity required : 1 |
||||||
|
4 |
AP0220335 - ARBRE SORTIE More informationQuantity required : 1 |
||||||
|
5 |
AP0650200 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
AP0650202 - JOINT More informationQuantity required : 1 |
||||||
|
6 |
AP0211495 - COUVERCLE TRANSMISSION; More informationQuantity required : 1 |
||||||
|
7 |
AP0930268 - JOINT SPI More informationQuantity required : 1 |
||||||
|
8 |
AP0232768 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/2/6/img/43526.jpg)
9 |
BEARING 6302 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, LEONARDO, PEGASO, RS, RX, SX, MX -AP0232291- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
10 |
AP0840880 - VIS More informationQuantity required : 6 |
||||||
|
11 |
AP0897330 - GRAISSE LITHIUM More informationQuantity required : 1 |
||||||
|
13 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
