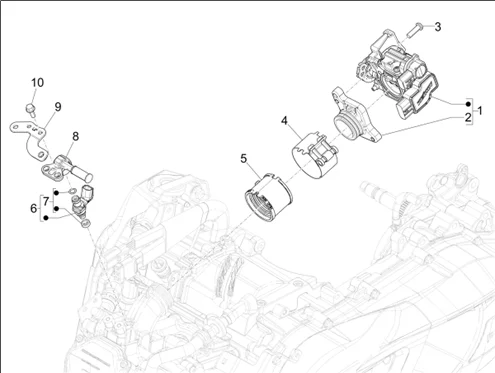

Moteur : 01.36 BOÎTIER PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1284/GTS_125_E5_Classic_SuperSport2024_SuperTech_2025__01.36.png)
1 |
1A0150975 - CORPS A PAPILLON CPL. More informationQuantity required : 1 |
||||||
|
2 |
1A012277 - TROTTLE BODY FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
3 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 2 |
||||||
|
4 |
1A015700 - COLLIER DURITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/0/img/162780.jpg)
5 |
1A012276 - MANCHON CORPS PAPIL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/2/img/162782.jpg)
6 |
1A013112 - FUEL INJECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/6/img/127596.jpg)
7 |
1D001198 - SET SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/3/2/img/127232.jpg)
8 |
1A003696 - CORPS D'INJECTEUR More informationQuantity required : 1 |
||||||
|
9 |
1A005008 - ETRIER. More informationQuantity required : 1 |
||||||
|
10 |
B013855 - VIS More informationQuantity required : 2 |
