Vehicle Exploded View - VESPA VESPA GTS 125 GTS 125 E5+ Classic SuperSport2024 SuperTech 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

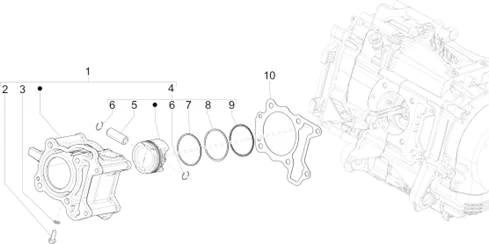

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1284/GTS_125_E5_Classic_SuperSport2024_SuperTech_2025__01.07.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/9/3/img/195793.jpg)
1 |
1A019550 - CYLINDER-PISTON-RING GROUP (125CC) More informationQuantity required : 1 |
||||||
2 |
1A004277 - VIS M6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/5/6/img/139556.jpg)
3 |
1A004280 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
1A0203320A - PISTON COMPL.CAT.A More informationQuantity required : 1 |
||||||
|
4 |
1A0203320B - PISTON COMPL.CAT.B More informationQuantity required : 1 |
||||||
|
4 |
1A0203320C - PISTON COMPL.CAT.C More informationQuantity required : 1 |
||||||
|
4 |
1A0203320D - PISTON COMPL.CAT.D More informationQuantity required : 1 |
||||||
|
5 |
1A014567 - PISTON PIN More informationQuantity required : 1 |
||||||
|
6 |
B015602 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/6/0/9/img/140609.jpg)
7 |
879475 - SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/3/2/img/139432.jpg)
8 |
879476 - SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/6/img/139446.jpg)
9 |
B016862 - SEGMENT RACLEUR D'HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/6/8/img/139468.jpg)
10 |
1A000750 - JOINT CYLIND/CARTER 0,4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/9/9/img/195799.jpg)
10 |
1A019140 - JOINT CYLINDRE/CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/6/9/img/139469.jpg)
10 |
1A000751 - JOINT CYLIND/CARTER 0,6 More informationQuantity required : 1 |
||||||
|
10 |
1A019141 - JOINT CYLINDRE/CARTER More informationQuantity required : 1 |
