Vehicle Exploded View - DERBI GPR 50 GPR REPLICA 2001 EXPORT MARKET
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

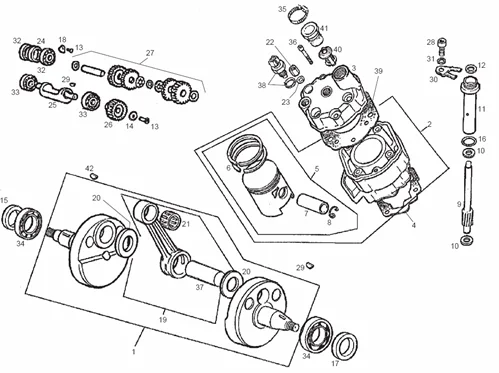

Tables : 15 ARBRE MOTEUR - CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1119/GPR_REPLICA_2001_EXPORT_MARKET_15.png)
1 |
00H02503141 - ENSEMBLE VILEBREQUIN-BIELLE GP More informationQuantity required : 1 |
||||||
|
2 |
00H05007121 - R-CTO.CILIND.-PISTON.SENDA-R More informationQuantity required : 1 |
||||||
|
2 |
00H05011121 - R-CTO.CILIND.-PIST.GPR 50 AUST More informationQuantity required : 1 |
||||||
|
3 |
00H02512011 - CULASSE More informationQuantity required : 1 |
||||||
|
3 |
00H02540012 - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/2/img/64702.jpg)
4 |
CYLINDER BASE GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02500041- More informationQuantity required : 1 |
||||||
|
5 |
00H02542091 - PISTON-COMPLET (A) More informationQuantity required : 1 |
||||||
|
5 |
00H02552091 - PISTON-COMPLET (B) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/2/img/69512.jpg)
5 |
PISTON (C) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>2017/APRILIA 50 SX, RX, RS 2006>2017 -8472625003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/0/4/img/69404.jpg)
6 |
PISTON RING- "PIAGGIO GENUINE PART" "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX/GILERA 50 SMT, RCR (POUR CYLIDRE ALUMINIUM) -847006 More informationQuantity required : 1 |
||||||
|
7 |
00003125120 - AXE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/8/img/69478.jpg)
8 |
847178 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
9 |
00H01600151 - AXE COMPTE-TOURS 74-80CC. More informationQuantity required : 1 |
||||||
|
10 |
00H01600161 - RONDELLE AXE COMPTE-TOURS 74/8 More informationQuantity required : 1 |
||||||
|
11 |
00H01600171 - CORPS GUIDE AXE COMPTE-TOURS 7 More informationQuantity required : 1 |
||||||
|
12 |
00H01600201 - JOINT AXE COMPTE TOURS G6X12X2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
13 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
|
14 |
00H02810801 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/2/img/73542.jpg)
17 |
O'RING GASKET ON CRANKSHAFT (IGNITION SIDE) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003, GPR -GU90402037 More informationQuantity required : 1 |
||||||
|
18 |
00H02500881 - BUTEE DE ROULEMENT More informationQuantity required : 1 |
||||||
|
19 |
00H05001011 - BIELLE AVEC CAGE ET AXE More informationQuantity required : 1 |
||||||
|
20 |
00002225220 - RONDELLE TETE DE BIELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/3/img/69523.jpg)
21 |
PISTON CAGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847529 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/6/9/img/63669.jpg)
22 |
NUT - FOR HANDLEBAR FASTENING "PIAGGIO GENUINE PART" GILERA GSM, H@K, ZULU, SMT, RCR 1998>2005 -00008202730- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/5/img/63635.jpg)
23 |
CYLINDER HEAD WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM 1998>2003 -00003125280 More informationQuantity required : 1 |
||||||
|
24 |
00H05000371 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
25 |
00H05010181 - AXE BALANCIER More informationQuantity required : 1 |
||||||
|
26 |
00H05010191 - PIGNON More informationQuantity required : 1 |
||||||
|
27 |
00H05010201 - SOUS-ENSEMBLE PIGNONS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
28 |
SCREW - MULTI PURPOSE M6X10 "PIAGGIO GENUINE PART" -319446- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
29 |
WOODRUFF KEY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -847215- More informationQuantity required : 1 |
||||||
|
30 |
|
||||||
|
31 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/4/4/img/63744.jpg)
32 |
BALANCE SHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 GPR -00058000000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
33 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847016- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/5/img/69475.jpg)
34 |
CRANKSHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>/APRILIA 50 SX, RX, RS 2006> -847172 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
35 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
36 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/1/img/63611.jpg)
37 |
CRANSHAFT PIN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU -00002025190 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/0/img/70730.jpg)
38 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006> -880325 More informationQuantity required : 1 |
||||||
|
39 |
00H02505021 - JOINT DE CULASSE More informationQuantity required : 1 |
||||||
|
40 |
00H03800431 - THERMOSTAT More informationQuantity required : 1 |
||||||
|
41 |
00H03810421 - ECROU More informationQuantity required : 1 |
||||||
|
42 |
00H02600491 - CLAVETTE PIGNON MOT. D-6888. 7 More informationQuantity required : 1 |
