Vehicle Exploded View - DERBI GPR 50 GPR REPLICA 2001 EXPORT MARKET
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

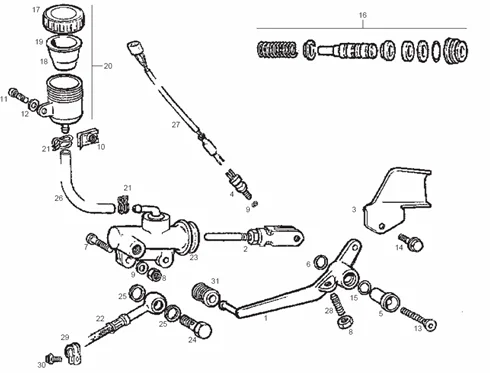

Tables : 13 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1119/GPR_REPLICA_2001_EXPORT_MARKET_13.png)
1 |
00H01102011 - S/ENSEMBLE PODALE FREIN GPR-50 More informationQuantity required : 1 |
||||||
|
2 |
00H01102611 - TIGE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
3 |
00H01101601 - PLAQUE PROTECTION POMPE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
4 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701 More informationQuantity required : 1 |
||||||
|
5 |
00H01100331 - DOUILLE ARTICULATION LEVIER FR More informationQuantity required : 1 |
||||||
|
6 |
00H01101391 - JOINTE FIXATION PODALE FREIN G More informationQuantity required : 1 |
||||||
|
7 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
8 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
9 |
BOULON S03105900 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
11 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
12 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
|
13 |
00000013840 - VIS AVANT ALLEN 8M125X40. D-79 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
14 |
969296 - BOULON More informationQuantity required : 1 |
||||||
|
15 |
00H00500211 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
00H01100461 - ENSEM. KIT POPMPE FREIN ARR. More informationQuantity required : 1 |
||||||
|
17 |
00D01100631 - BOUCHON DU RESERVOIR DU LIQ.FREIN More informationQuantity required : 1 |
||||||
|
18 |
00D01100651 - ENTRETOISE RESERVOIR More informationQuantity required : 1 |
||||||
|
19 |
00D01100641 - JOINT BOUCHON DU RESERV.LIQ.FR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/3/img/63873.jpg)
20 |
REAR BRAKE FLUID TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01100201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/0/9/img/64809.jpg)
21 |
HOSE CLAMP FOR BRAKE TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03700131- More informationQuantity required : 1 |
||||||
|
22 |
00H01105081 - TIGE DE FREIN More informationQuantity required : 1 |
||||||
|
23 |
00D01100181 - ENSEMBLE COMMANDE FREIN ARRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
24 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
25 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/4/img/63874.jpg)
26 |
00D01100211 - FLEXIBLE DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
27 |
00H02300221 - ENSEMBLE CONNEXION INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
28 |
00H04400851 - TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
29 |
FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
30 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/7/img/63637.jpg)
31 |
00003127270 - CAOUTCHOUC DE SELECTEUR More informationQuantity required : 1 |
