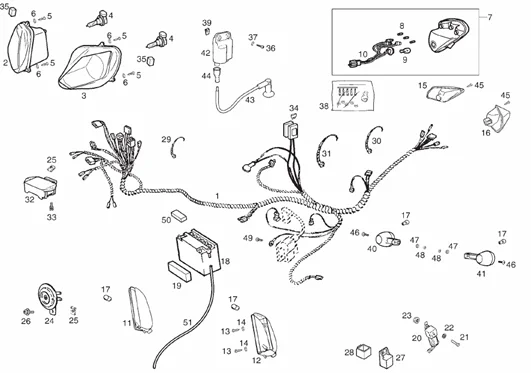

Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA)

	P2R reference	195151
	Maker reference	86101R

86101R - FAISCEAU DE CABLES

	P2R reference	63972
	Maker reference	00G01026011

00G01026011 - OPTIQUE DR.

	P2R reference	63973
	Maker reference	00G01027011

00G01027011 - OPTIQUE GA.

	P2R reference	64381
	Maker reference	00H01004131

LIGHT BULB H8 12V-35W "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD, RS 50, SPORT-CITY -00H01004131-

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	64387
	Maker reference	00H01011321

TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01011321-

	P2R reference	64371
	Maker reference	00H01001371

00H01001371 - AMPOULE 12V.2,31W

	P2R reference	48170
	Maker reference	AP8127490

BULB W16W 12V 16W "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC 2003>2008, 50 RS 2006>2010 -AP8127490-

	P2R reference	64380
	Maker reference	00H01003951

00H01003951 - FAISCEAU FEU ARRIERE

	P2R reference	194960
	Maker reference	00G01706021

00G01706021 - CLIGNOTANT

	P2R reference	194961
	Maker reference	00G01706311

00G01706311 - CLIGNOTANT

	P2R reference	195152
	Maker reference	861886

861886 - CRISTAL NG.INTT.TRAS.DR.GP1 50 OPEN

	P2R reference	195153
	Maker reference	861887

861887 - CRISTAL NG.INTT.TRAS.IZ.GP1 50 OPEN

	P2R reference	71603
	Maker reference	AP8127489

AP8127489 - LAMPE RY10W 12V

	P2R reference	65970
	Maker reference	234390

234390 - BATTERIE 12V/4 AH YUASA YB4L-B

	P2R reference	195116
	Maker reference	861956

861956 - ESPUMA TOPE BATERIA GP1 OPEN 80X40X15

	P2R reference	64998
	Maker reference	00H05700711

RELAY "PIAGGIO GENUINE PART" GILERA 125 SC -00H05700711-

	P2R reference	65408
	Maker reference	0159965

015996 - VIS

	P2R reference	64382
	Maker reference	00H01005311

HORN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01005311

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	63923
	Maker reference	00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference	70898
	Maker reference	942577

942577 - SUPPORT RELAIS

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	67191
	Maker reference	58096R

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 ZIP 2009>, TYPHOON 2006>, FLY 2005>, LIBERTY 2006>, NRG POWER 2005>VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER 2005>, RUNNER 2005> -58096R

	P2R reference	64151
	Maker reference	00G06800021

SCREW - FOR IGNITION COIL FASTENING 6X20 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G06800021

	P2R reference	64373
	Maker reference	00H01001911

00H01001911 - FUSIBLE

	P2R reference	41728
	Maker reference	890512

890512 - EPONGE ADHESIVE 15X8

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	70041
	Maker reference	863991

863991 - R-KIT REPARACION INSTLCION.ELEC.GP1 50CC

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	64598
	Maker reference	00H01706021

00H01706021 - GLIGNOTEURS AR. DROITE

	P2R reference	64597
	Maker reference	00H01704311

00H01704311 - CLIGNOTANTS AR. GAUCHE

	P2R reference	187413
	Maker reference	00G03310171

00G03310171 - BOBINE

	P2R reference	68522
	Maker reference	825186

SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE 50CC 2 STROKE RANGE -825186-

	P2R reference	65966
	Maker reference	231571

231571 - CAPUCHON

	P2R reference	63664
	Maker reference	000080615005

00008061500 - VIS A TETE RONDE 6M100X16

	P2R reference	63726
	Maker reference	000311060005

00031106000 - RONDELLE PLATE D6

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	195116
	Maker reference	861956

861956 - ESPUMA TOPE BATERIA GP1 OPEN 80X40X15

	P2R reference	195154
	Maker reference	863038

863038 - TUBE EVENT DE LA BATTERIE
