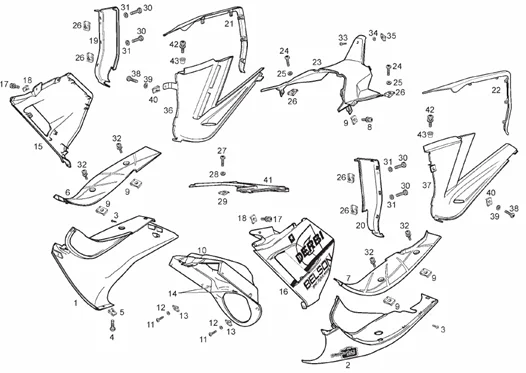

Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA) DERBI

Vues éclatées : 06B CHASSIS
Chassis
Search
86541500WR75 - GRILLE DRT.

1
P2R reference P2R reference 195137
Maker reference Maker reference 86541500WR75

86541500WR75 - GRILLE DRT.

More information

Quantity required : 1

86541700WR75 - GRILLE GAU

2
P2R reference P2R reference 195138
Maker reference Maker reference 86541700WR75

86541700WR75 - GRILLE GAU

More information

Quantity required : 1

3
P2R reference P2R reference
Maker reference Maker reference 000110425005

SCREW - FOR FAIRINGS FASTENING 6X14 "PIAGGIO GENUINE PART" GILERA 50 GPR -00H06300861

4
P2R reference P2R reference 65033
Maker reference Maker reference 00H06300861

SCREW - FOR FAIRINGS FASTENING 6X14 "PIAGGIO GENUINE PART" GILERA 50 GPR -00H06300861

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

5
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

00G01507091 - REPOSAPIES DRCH.GP1 250CC 05

6
P2R reference P2R reference 194908
Maker reference Maker reference 00G01507091

00G01507091 - REPOSAPIES DRCH.GP1 250CC 05

More information

Quantity required : 1

00G01502451 - REPOSAPIES IZQDO.GP1 250CC 05

7
P2R reference P2R reference 194909
Maker reference Maker reference 00G01502451

00G01502451 - REPOSAPIES IZQDO.GP1 250CC 05

More information

Quantity required : 1

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

8
P2R reference P2R reference 63923
Maker reference Maker reference 00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

9
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

863409 - GUARDB.DLNT.INT.GP1 50 OPEN

10
P2R reference P2R reference 194910
Maker reference Maker reference 863409

863409 - GUARDB.DLNT.INT.GP1 50 OPEN

More information

Quantity required : 1

00012162000 - BOULON TETE HEX.5M80X15

11
P2R reference P2R reference 63705
Maker reference Maker reference 000121620005

00012162000 - BOULON TETE HEX.5M80X15

More information

Quantity required : 1

00031106000 - RONDELLE PLATE D6

12
P2R reference P2R reference 63726
Maker reference Maker reference 000311060005

00031106000 - RONDELLE PLATE D6

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

13
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

14
P2R reference P2R reference
Maker reference Maker reference 000110310015

20G01508231 - COUVERCLE LATERAL D

15
P2R reference P2R reference 194911
Maker reference Maker reference 20G01508231

20G01508231 - COUVERCLE LATERAL D

More information

Quantity required : 1

20G06816321 - COUVERCLE LATERAL G

16
P2R reference P2R reference 194912
Maker reference Maker reference 20G06816321

20G06816321 - COUVERCLE LATERAL G

More information

Quantity required : 1

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

17
P2R reference P2R reference 63923
Maker reference Maker reference 00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

More information

Quantity required : 1

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

18
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 1

00G04403771 - TAPA INF.CUBRDPSTO.DR.GP1 250

19
P2R reference P2R reference 194913
Maker reference Maker reference 00G04403771

00G04403771 - TAPA INF.CUBRDPSTO.DR.GP1 250

More information

Quantity required : 1

00G04403781 - TAPA INF.CUBRDPSTO.IZ.GP1 250

20
P2R reference P2R reference 194914
Maker reference Maker reference 00G04403781

00G04403781 - TAPA INF.CUBRDPSTO.IZ.GP1 250

More information

Quantity required : 1

00G04400971 - COUVERCLE

21
P2R reference P2R reference 194915
Maker reference Maker reference 00G04400971

00G04400971 - COUVERCLE

More information

Quantity required : 1

00G04400981 - COUVERCLE

22
P2R reference P2R reference 194916
Maker reference Maker reference 00G04400981

00G04400981 - COUVERCLE

More information

Quantity required : 1

00G00400681 - COUVERCLE RESERVOIR ESSENCE

23
P2R reference P2R reference 195136
Maker reference Maker reference 00G00400681

00G00400681 - COUVERCLE RESERVOIR ESSENCE

More information

Quantity required : 1

00012151500 - VIS A TETE RONDE A FENTES C

24
P2R reference P2R reference 63702
Maker reference Maker reference 000121515005

00012151500 - VIS A TETE RONDE A FENTES C

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

25
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

26
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

00008051600 - BOULON BOMBEE ALLEN 5M80X16

27
P2R reference P2R reference 63662
Maker reference Maker reference 000080516005

00008051600 - BOULON BOMBEE ALLEN 5M80X16

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

28
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

29
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

00012151500 - VIS A TETE RONDE A FENTES C

30
P2R reference P2R reference 63702
Maker reference Maker reference 000121515005

00012151500 - VIS A TETE RONDE A FENTES C

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

31
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

More information

Quantity required : 1

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

32
P2R reference P2R reference 65008
Maker reference Maker reference 00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

More information

Quantity required : 1

00008051200 - VIS 5X12

33
P2R reference P2R reference 63661
Maker reference Maker reference 000080512005

00008051200 - VIS 5X12

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

34
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

35
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

862596 - TAPA LAT.DR.CUBR.DPSTO.GAS.¦06

36
P2R reference P2R reference 194921
Maker reference Maker reference 862596

862596 - TAPA LAT.DR.CUBR.DPSTO.GAS.-06

More information

Quantity required : 1

862597 - TAPA LAT.IZ.CUBR.DPSTO.GAS.¦06

37
P2R reference P2R reference 194922
Maker reference Maker reference 862597

862597 - TAPA LAT.IZ.CUBR.DPSTO.GAS.-06

More information

Quantity required : 1

00012151500 - VIS A TETE RONDE A FENTES C

38
P2R reference P2R reference 63702
Maker reference Maker reference 000121515005

00012151500 - VIS A TETE RONDE A FENTES C

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

39
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

More information

Quantity required : 1

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

40
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

More information

Quantity required : 1

00G05912911 - TAPA INF.CUBR.DPST.GAS.GP1 250

41
P2R reference P2R reference 194923
Maker reference Maker reference 00G05912911

00G05912911 - TAPA INF.CUBR.DPST.GAS.GP1 250

More information

Quantity required : 1

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

42
P2R reference P2R reference 65008
Maker reference Maker reference 00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

More information

Quantity required : 1

00H04401711 - TUERCA NYLON

43
P2R reference P2R reference 194924
Maker reference Maker reference 00H04401711

00H04401711 - TUERCA NYLON

More information

Quantity required : 1
