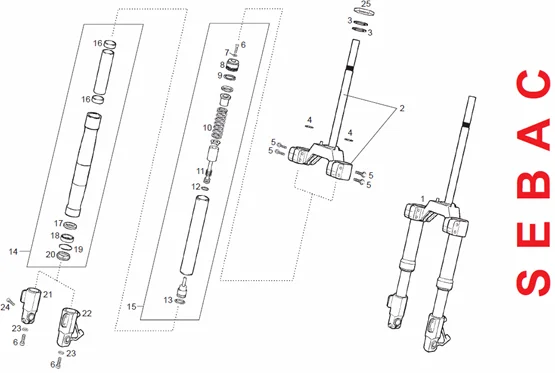

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA) DERBI

Suspensions - roues : 02A FOURCHE AV. SEBAC
Fourche Av. SEBAC
Search
00G00212001 - FOURCHE AVANT

1
P2R reference P2R reference 195306
Maker reference Maker reference 00G00212001

00G00212001 - FOURCHE AVANT

More information

Quantity required : 1

00G00212001 - FOURCHE AVANT

2
P2R reference P2R reference 195306
Maker reference Maker reference 00G00212001

00G00212001 - FOURCHE AVANT

More information

Quantity required : 1

00H00206101 - RONDELLE FIX PIVOT

3
P2R reference P2R reference 64193
Maker reference Maker reference 00H00206101

00H00206101 - RONDELLE FIX PIVOT

More information

Quantity required : 1

00G00202601 - ANNEAU

4
P2R reference P2R reference 195307
Maker reference Maker reference 00G00202601

00G00202601 - ANNEAU

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 000061050005

00000004835 - VIS A TETE ALLEN 8M125X35.

6
P2R reference P2R reference 63577
Maker reference Maker reference 000000048355

00000004835 - VIS A TETE ALLEN 8M125X35.

More information

Quantity required : 1

00G02000851 - RONDELLE

7
P2R reference P2R reference 195308
Maker reference Maker reference 00G02000851

00G02000851 - RONDELLE

More information

Quantity required : 1

00G02003541 - BOUCHON

8
P2R reference P2R reference 195309
Maker reference Maker reference 00G02003541

00G02003541 - BOUCHON

More information

Quantity required : 1

00G00200521 - ANNEAU

9
P2R reference P2R reference 195310
Maker reference Maker reference 00G00200521

00G00200521 - ANNEAU

More information

Quantity required : 1

00G00207171 - RESSORT

10
P2R reference P2R reference 195311
Maker reference Maker reference 00G00207171

00G00207171 - RESSORT

More information

Quantity required : 1

00G00203881 - RESSORT

11
P2R reference P2R reference 195312
Maker reference Maker reference 00G00203881

00G00203881 - RESSORT

More information

Quantity required : 1

00G00201501 - ANNEAU

12
P2R reference P2R reference 195313
Maker reference Maker reference 00G00201501

00G00201501 - ANNEAU

More information

Quantity required : 1

00H00202691 - RONDELLE

13
P2R reference P2R reference 193551
Maker reference Maker reference 00H00202691

00H00202691 - RONDELLE

More information

Quantity required : 1

00G02001041 - TUBE DE FOURCHE

14
P2R reference P2R reference 195314
Maker reference Maker reference 00G02001041

00G02001041 - TUBE DE FOURCHE

More information

Quantity required : 1

00G00203531 - TUBE DE FOURCHE HYDRAULIQUE

15
P2R reference P2R reference 195315
Maker reference Maker reference 00G00203531

00G00203531 - TUBE DE FOURCHE HYDRAULIQUE

More information

Quantity required : 1

00H00205151 - ENTRETOISE

16
P2R reference P2R reference 193552
Maker reference Maker reference 00H00205151

00H00205151 - ENTRETOISE

More information

Quantity required : 1

00G00203441 - RONDELLE

17
P2R reference P2R reference 195316
Maker reference Maker reference 00G00203441

00G00203441 - RONDELLE

More information

Quantity required : 1

00G00204471 - R-ANNEAU FOURREAU FOURCHE

18
P2R reference P2R reference 193553
Maker reference Maker reference 00G00204471

00G00204471 - R-ANNEAU FOURREAU FOURCHE

More information

Quantity required : 1

00G00201601 - CIRCLIPS

19
P2R reference P2R reference 193554
Maker reference Maker reference 00G00201601

00G00201601 - CIRCLIPS

More information

Quantity required : 1

FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127-

20
P2R reference P2R reference 67413
Maker reference Maker reference 600127

FORK DUST COVER - "PIAGGIO GENUINE PART" 125 X9 2003>2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999>2005, RX 1995>2004 -600127-

More information

Quantity required : 1

00G02000921 - R-BOUCHON EXTRMIT DROITE FOU

21
P2R reference P2R reference 195317
Maker reference Maker reference 00G02000921

00G02000921 - R-BOUCHON EXTRMIT DROITE FOU

More information

Quantity required : 1

00G02001921 - R-BOUCHON EXTRMIT GAUCHE FOU

22
P2R reference P2R reference 195318
Maker reference Maker reference 00G02001921

00G02001921 - R-BOUCHON EXTRMIT GAUCHE FOU

More information

Quantity required : 1

00034001002 - RONDELLE FREIN

23
P2R reference P2R reference 63732
Maker reference Maker reference 000340010025

00034001002 - RONDELLE FREIN

More information

Quantity required : 1

00000004830 - BOULON TETE HEX.8M125X30 D933

24
P2R reference P2R reference 63576
Maker reference Maker reference 000000048305

00000004830 - BOULON TETE HEX.8M125X30 D933

More information

Quantity required : 1

NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G00200112

25
P2R reference P2R reference 63924
Maker reference Maker reference 00G00200112

NUT - FOR UPPER FORK PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G00200112

More information

Quantity required : 1
