Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

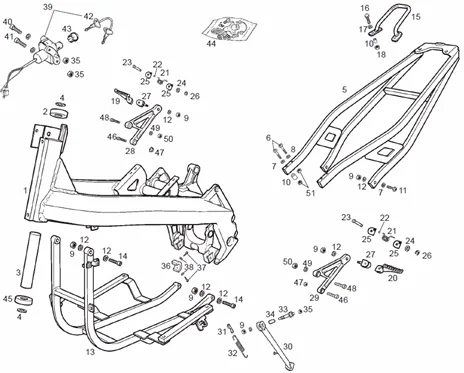

Châssis - parties plastiques - carrosseries : 1 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1154/GP1_50_Race_2ver_E2_2005-2007_(EMEA)_1.png)
1 |
00G019306015 - SOUS ENSEMBLE CADRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/6/img/63606.jpg)
2 |
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00000056205- More informationQuantity required : 1 |
||||||
|
3 |
00G06302401 - TUBE SEP. ROULEMENT DIRECTION More informationQuantity required : 1 |
||||||
|
3 |
00G06303401 - TUBO SEP.RDMTO.DIRECC.GP1 05 More informationQuantity required : 1 |
||||||
|
4 |
00H02001721 - RONDELLE FIXE DIRECTION 35X25X More informationQuantity required : 1 |
||||||
|
5 |
00G00101341 - CADRE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
6 |
00004184500 - VIS More informationQuantity required : 1 |
||||||
|
7 |
00000033080 - RONDELLE More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
9 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
10 |
00G01403411 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
00004184001 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
12 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
13 |
00G00102941 - CADRE ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/0/img/63620.jpg)
14 |
00002084011 - VIS More informationQuantity required : 1 |
||||||
|
15 |
00G04902731A - POIGNÉE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/7/img/65647.jpg)
16 |
031120 - BOULON S03112000 More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
18 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
|
19 |
RIGHT FOOTREST "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01507091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/6/img/64556.jpg)
20 |
LEFT FOOTREST "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01507451- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/1/img/64951.jpg)
21 |
00H04902291 - RESSORT FIXATION FTRIER PASSAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/8/img/63608.jpg)
22 |
00000061061 - BILLE DIAMETRE 6. More informationQuantity required : 1 |
||||||
|
23 |
00H04902311 - AXE ARTICULATION TRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
24 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/5/img/64955.jpg)
25 |
00H04903401 - SUPPORT FIXATION TRIER PASSAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
26 |
CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400- More informationQuantity required : 1 |
||||||
|
27 |
00H02202301 - APPUI REPOSE PIED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/1/img/64531.jpg)
28 |
FOOTREST SUPPORT- FRONT LEFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01501131 More informationQuantity required : 1 |
||||||
|
29 |
00G01500131 - REPOSE PIED GAUCHE More informationQuantity required : 1 |
||||||
|
30 |
00G00807011 - BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
31 |
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468- More informationQuantity required : 1 |
||||||
|
32 |
00G00800081 - RESSORT BEQUILLE More informationQuantity required : 1 |
||||||
|
33 |
00G00803071 - VIS More informationQuantity required : 1 |
||||||
|
34 |
00H00801261 - DOUILLE ROT.JAMBE BEQUILLE SEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
35 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
36 |
00G01800331 - GUIDE CHAONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
37 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
38 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/3/9/img/64139.jpg)
39 |
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 100 DIESIS -00G05900331- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
40 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
41 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
41 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
42 |
00H01801411 - CLEF More informationQuantity required : 1 |
||||||
|
43 |
IGNITION SWITCH COVER "PIAGGIO GENUINE PART" PIAGGIO 50 DIESIS -00G01500021- More informationQuantity required : 1 |
||||||
|
44 |
00G05908251 - ENS.KIT SERRURES More informationQuantity required : 1 |
||||||
|
45 |
00G06501451 - ROULEMENT More informationQuantity required : 1 |
||||||
|
46 |
|
||||||
|
47 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
48 |
|
||||||
|
49 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
50 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/0/img/63720.jpg)
51 |
00026008001 - ECROU More informationQuantity required : 1 |
