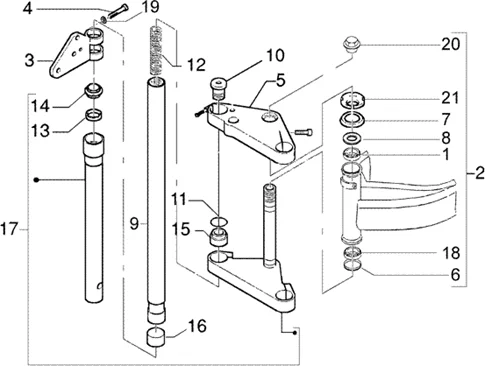

Suspensions-roues : T31 FOURCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/676/DNA_MY_2005_T31.PNG)
1 |
953659 - ROULEMENT More informationQuantity required : 1 |
||||||
|
3 |
970372 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
970273 - VIS More informationQuantity required : 4 |
||||||
|
5 |
647982 - FOURCHE DNA 50/125/180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/3/1/img/78331.jpg)
6 |
321629 - PARE POUSSIERE More informationQuantity required : 1 |
||||||
|
7 |
323820 - COIFFE More informationQuantity required : 1 |
||||||
|
8 |
323819 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
9 |
647982 - FOURCHE DNA 50/125/180 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/5/0/img/82350.jpg)
13 |
FORK OIL SEAL "PIAGGIO GENUINE PART" GILERA 50 DNA, 125 RUNNER FX, VX/PIAGGIO 125-250 BEVERLY -598190- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/3/5/1/img/82351.jpg)
14 |
598191 - JOINT More informationQuantity required : 2 |
||||||
|
15 |
497057 - ENTRETOISE DNA More informationQuantity required : 2 |
||||||
|
16 |
601138 - SILENBLOC More informationQuantity required : 2 |
||||||
|
17 |
647982 - FOURCHE DNA 50/125/180 More informationQuantity required : 1 |
||||||
|
18 |
348744 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
19 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 4 |
||||||
|
21 |
326078 - DOUILLE More informationQuantity required : 1 |
