Vehicle Exploded View - GILERA DNA 50 DNA MY 2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

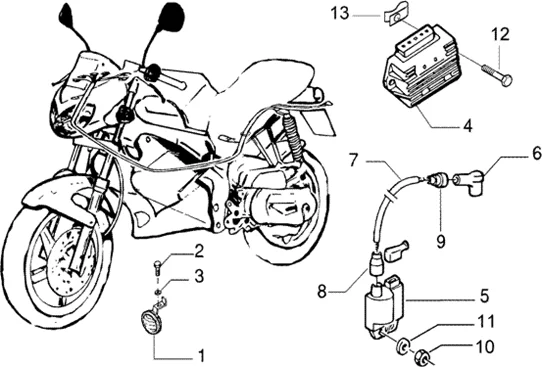

Connexions électriques : T39 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/676/DNA_MY_2005_T39.PNG)
1 |
CM071808 - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/5/img/65405.jpg)
2 |
015946 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
3 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/1/img/67191.jpg)
4 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 ZIP 2009>, TYPHOON 2006>, FLY 2005>, LIBERTY 2006>, NRG POWER 2005>VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER 2005>, RUNNER 2005> -58096R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/9/0/img/67190.jpg)
5 |
IGNITION COIL "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, ZIP 2 STROKE, VESPA LX 2 STROKE, VESPA-S 2 STROKE/APRILIA 50 CITY 2 STROKE, SR, SCARABEO 2 STROKE/GILERA 50 DNA, STALKER, RUNNER -58095R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/2/img/68522.jpg)
6 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE 50CC 2 STROKE RANGE -825186- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
7 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/6/img/65966.jpg)
8 |
231571 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMON TO ALL THE 50CC 2 STROKE RANGE -825186- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/4/img/65984.JPG)
10 |
241937 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/8/img/65428.jpg)
11 |
WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/7/img/67257.jpg)
12 |
582469 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
