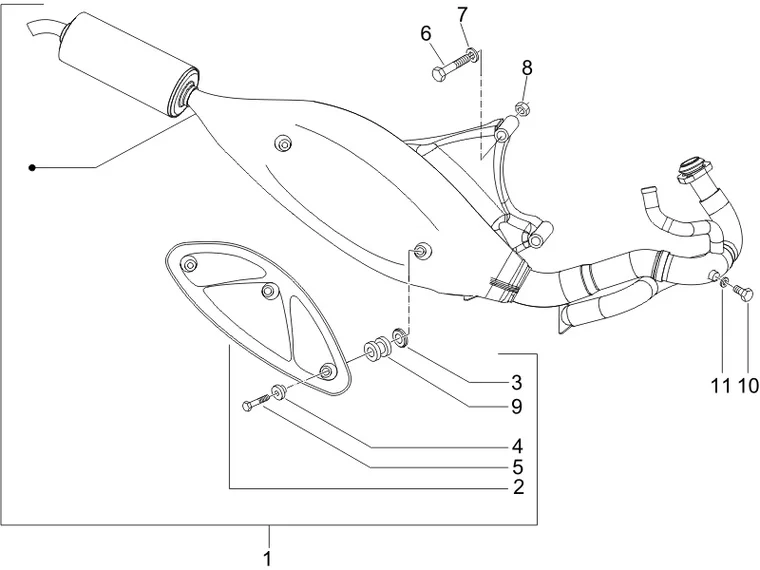

Vehicle Exploded View - GILERA DNA 50 2006 GILERA

Moteur : 01.42 SILENCIEUX
Silencieux
Search
833650 - SILENCIEUX

1
P2R reference P2R reference 69075
Maker reference Maker reference 833650

833650 - SILENCIEUX

More information

Quantity required : 1
EXHAUST PROTECTION "PIAGGIO GENUINE PART" GILERA 50 DNA -827340-

2
P2R reference P2R reference 68665
Maker reference Maker reference 827340

EXHAUST PROTECTION "PIAGGIO GENUINE PART" GILERA 50 DNA -827340-

More information

Quantity required : 1
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117-

3
P2R reference P2R reference 68585
Maker reference Maker reference 826117

SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117-

More information

Quantity required : 3
EXHAUST PROTECTION WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -826118-

4
P2R reference P2R reference 68586
Maker reference Maker reference 826118

EXHAUST PROTECTION WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -826118-

More information

Quantity required : 3
433800 - BOULON

5
P2R reference P2R reference 66440
Maker reference Maker reference 433800

433800 - BOULON

More information

Quantity required : 3
SCREW - FOR EXHAUST MOUNTING "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON, ZIP/GILERA 50 STALKER, DNA -845590-

6
P2R reference P2R reference 69354
Maker reference Maker reference 845590

SCREW - FOR EXHAUST MOUNTING "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON, ZIP/GILERA 50 STALKER, DNA -845590-

More information

Quantity required : 2
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

7
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187-

More information

Quantity required : 2
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

8
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 2
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665-

9
P2R reference P2R reference 66744
Maker reference Maker reference 487665

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665-

More information

Quantity required : 3
EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

10
P2R reference P2R reference 66433
Maker reference Maker reference 433122

EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122-

More information

Quantity required : 1
EXHAUST WASHER Ø10,2xØ15x2 FOR ALL THE RANGE -016195-

11
P2R reference P2R reference 65412
Maker reference Maker reference 016195

EXHAUST WASHER Ø10,2XØ15X2 FOR ALL THE RANGE -016195-

More information

Quantity required : 1

All the exploded views of this vehicle
