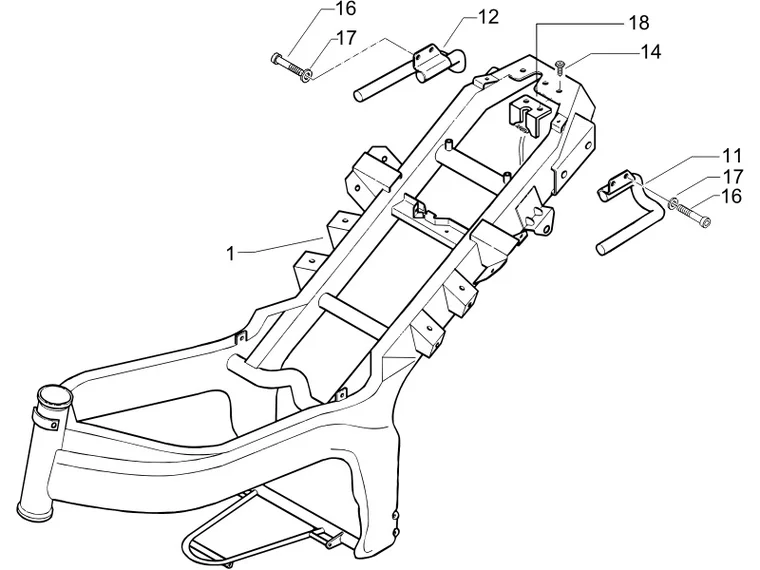

Vehicle Exploded View - GILERA DNA 50 2006 GILERA

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
Châssis/coque
Search
9703685 - CHASSIS

1
P2R reference P2R reference 94173
Maker reference Maker reference 9703685

9703685 - CHASSIS

More information

Quantity required : 1
970228 - POIGNEE

11
P2R reference P2R reference 94146
Maker reference Maker reference 970228

970228 - POIGNEE

More information

Quantity required : 1
970225 - POIGNEE

12
P2R reference P2R reference 94145
Maker reference Maker reference 970225

970225 - POIGNEE

More information

Quantity required : 1
SCREW - (M6x16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836-

14
P2R reference P2R reference 66117
Maker reference Maker reference 272836

SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836-

More information

Quantity required : 2
031116 - BOULON

16
P2R reference P2R reference 65644
Maker reference Maker reference 031116

031116 - BOULON

More information

Quantity required : 2
WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

17
P2R reference P2R reference 65418
Maker reference Maker reference 016408

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 2
CM023702 - SERRURE

18
P2R reference P2R reference 95230
Maker reference Maker reference CM023702

CM023702 - SERRURE

More information

Quantity required : 1
