Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 1992-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

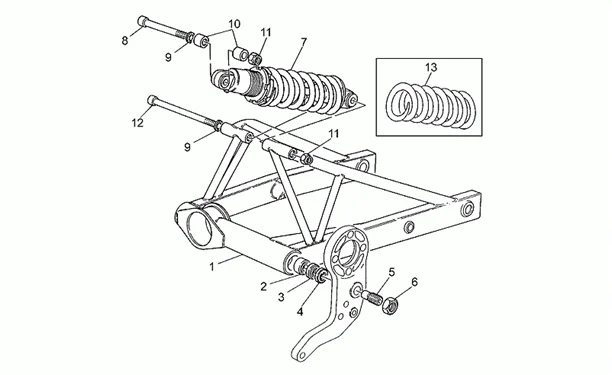

Chassis : 33.09 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/485/Daytona_1000_1992-1995_33.09.PNG)
2 |
GU92249217 - ROULEMENT More informationQuantity required : 2 |
||||||
|
4 |
GU12547200 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
6 |
GU30547800 - ECROU More informationQuantity required : 2 |
||||||
|
8 |
GU98610690 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/5/4/img/130654.jpg)
9 |
GU30217900 - RONDELLE 13X18X1,7 More informationQuantity required : 2 |
||||||
|
10 |
GU91181217 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
11 |
GU92630111 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
GU98680616 - VIS INFERIEURE More informationQuantity required : 1 |
||||||
|
13 |
GU30552302 - RESSORT DUR More informationQuantity required : 1 |
