Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 1992-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

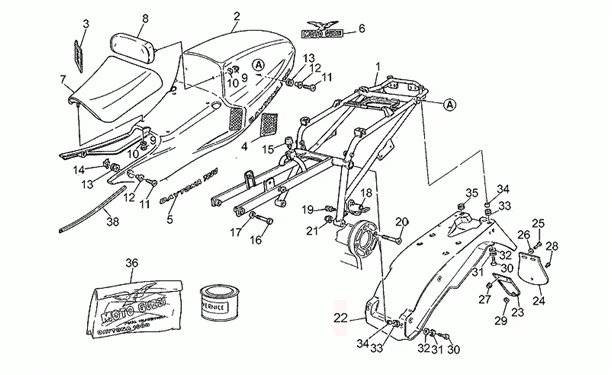

Chassis : 33.02 QUEUE-CACHE-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/485/Daytona_1000_1992-1995_33.02.PNG)
1 |
Cadre ar. |
||||||
|
2 |
|
||||||
|
3 |
GRILLE |
||||||
|
4 |
GRILLE |
||||||
|
5 |
"Décalco ""Daytona 1000""" |
||||||
|
6 |
"Décalco ""Moto Guzzi""" |
||||||
|
7 |
Selle monoplace |
||||||
|
8 |
GU30461500 - COUSSIN DOSSIER More informationQuantity required : 1 |
||||||
|
9 |
GU92630106 - ECROU M6X1 More informationQuantity required : 6 |
||||||
|
10 |
GU95000206 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/7/2/img/132972.jpg)
11 |
GU98230622 - VIS More informationQuantity required : 4 |
||||||
|
12 |
GU30576100 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
13 |
GU91551010 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
14 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
|
15 |
GU19461650 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
16 |
GU98052456 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
17 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
18 |
GU66466815 - SERRURE CASQUE More informationQuantity required : 1 |
||||||
|
19 |
GU66468115 - VIS A ARRACHEMENT More informationQuantity required : 2 |
||||||
|
20 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
21 |
GU92630110 - ECROU M10X1,5 More informationQuantity required : 2 |
||||||
|
22 |
GU30437000 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
|
23 |
GU30438102 - SUPP JUPE ANTI-ECLAB. More informationQuantity required : 1 |
||||||
|
24 |
PARE BOUE AR. |
||||||
|
25 |
GU98230620 - VIS More informationQuantity required : 2 |
||||||
|
26 |
GU95001206 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/0/7/img/127207.jpg)
27 |
GU92630207 - ECROU More informationQuantity required : 2 |
||||||
|
28 |
GU23922210 - PIVOT More informationQuantity required : 1 |
||||||
|
29 |
GU95100123 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
31 |
AP8152105 - RONDELLE More informationQuantity required : 4 |
||||||
|
32 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
33 |
GU91551082 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
34 |
GU91180608 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
35 |
GU91551080 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
36 |
Décalco série |
||||||
|
38 |
|
