Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

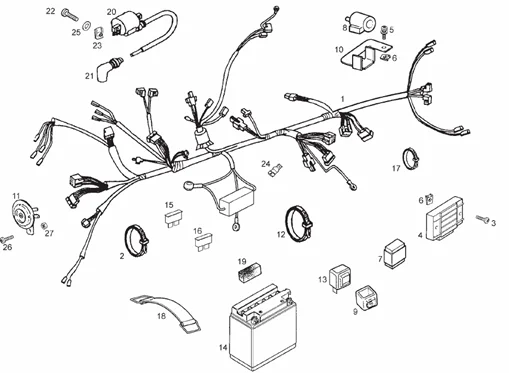

Vues éclatées : 8 CIRCUIT ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1144/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_8.png)
1 |
00H01051301 - CTO.INSTALAC.SD 125CC ZONGSH. More informationQuantity required : 1 |
||||||
|
2 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
||||||
|
3 |
00012162000 - BOULON TETE HEX.5M80X15 More informationQuantity required : 1 |
||||||
|
4 |
862905 - REGULADOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
5 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
7 |
862906 - CENTRALE More informationQuantity required : 1 |
||||||
|
8 |
862908 - RELAIS More informationQuantity required : 1 |
||||||
|
9 |
942577 - SUPPORT RELAIS More informationQuantity required : 1 |
||||||
|
10 |
00H02300361 - SUPPORT More informationQuantity required : 1 |
||||||
|
11 |
863339 - KLAXON More informationQuantity required : 1 |
||||||
|
11 |
864458 - SCTO.CLAXON 12V TER125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
12 |
00F00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
13 |
00G01700401 - CENTRAL CLIGNOTANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
14 |
584662 - BATTERIE YUASA YTX7L-BS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/6/9/4/8/img/136948.jpg)
14 |
BATTERY 12V 6 AH BTX7L-BS "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, 50 VESPA LX, VESPA S, PRIMAVERA, 125 MEDLEY, VESPA GTS/APRILIA 125 RS, 50 SR (LG114XL70XH131) -1R000317- More informationQuantity required : 1 |
||||||
|
15 |
00H01001911 - FUSIBLE More informationQuantity required : 1 |
||||||
|
16 |
00H01002911 - FUSIBLE More informationQuantity required : 1 |
||||||
|
17 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
19 |
00H01803471 - BUTE POSITIONNEUR BATTERIE More informationQuantity required : 1 |
||||||
|
20 |
862907 - BOBINE More informationQuantity required : 1 |
||||||
|
21 |
862907 - BOBINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/4/img/63614.jpg)
22 |
SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
23 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
|
24 |
863003 - DIODE More informationQuantity required : 1 |
||||||
|
25 |
00031105000 - RONDELLE PLATE M5 DIN125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
26 |
AP8150169 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
27 |
00262080022 - ECROU More informationQuantity required : 1 |
