Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)

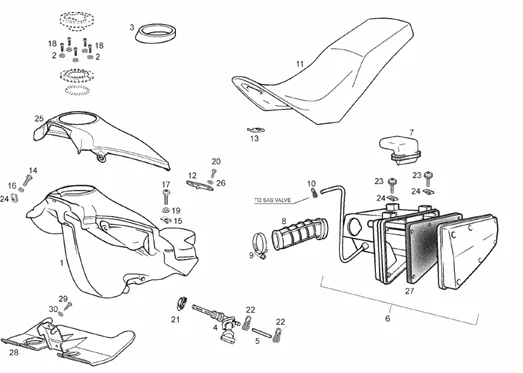

Vues éclatées : 4 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1144/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_4.png)
4 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1144/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_4.png)
![]() 1 |
00H00412011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
![]() 2 |
00031105000 - RONDELLE PLATE M5 DIN125 More informationQuantity required : 1 |
||||||
![]() 3 |
865968 - ADORNO TAPON DPSTO.GASOL.DRD125 09 More informationQuantity required : 1 |
||||||
![]() 4 |
00H00404181 - ENSEMBLE ROBINET ESSENCE More informationQuantity required : 1 |
||||||
![]() 5 |
00F00403321 - TUBE ESSENCE More informationQuantity required : 1 |
||||||
![]() 6 |
863860 - CORPS FILTRE More informationQuantity required : 1 |
||||||
![]() 7 |
00H03204491 - TUBE DIASPIRATION More informationQuantity required : 1 |
||||||
![]() 8 |
00H03215261 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
![]() 9 |
864249 - FLASQUE More informationQuantity required : 1 |
||||||
![]() 10 |
00H06400291 - COLLIER More informationQuantity required : 1 |
||||||
![]() 11 |
8633920001 - SELLE More informationQuantity required : 1 |
||||||
![]() 12 |
00H06800501 - BOUCHON More informationQuantity required : 1 |
||||||
![]() 13 |
00H00606141 - LEVIER More informationQuantity required : 1 |
||||||
![]() 14 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701- More informationQuantity required : 1 |
||||||
![]() 15 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
![]() 16 |
00H00500212 - ROND.FIX.PORTE-CASQUE (NOIR)H. More informationQuantity required : 1 |
||||||
![]() 17 |
00012151500 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
![]() 18 |
|
||||||
![]() 19 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
![]() 20 |
00012051200 - VIS T.RONDE CROIX 5M80X12 More informationQuantity required : 1 |
||||||
![]() 21 |
00G00400501 - COLLIER More informationQuantity required : 1 |
||||||
![]() 22 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
![]() 23 |
|
||||||
![]() 24 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
![]() 25 |
86341400WN05 - TAPA SUP.DPSTO.NGR.OMB.CR.CITY More informationQuantity required : 1 |
||||||
![]() 26 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
![]() 27 |
861817 - FILTRE AIR More informationQuantity required : 1 |
||||||
![]() 28 |
864393 - PROTECTION More informationQuantity required : 1 |
||||||
![]() 29 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300- More informationQuantity required : 1 |
||||||
![]() 30 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
