Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)

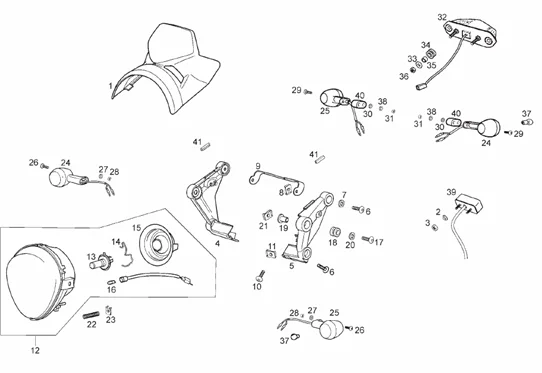

Vues éclatées : 7 PHARE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1143/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_7.png)
7 PHARE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1143/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_7.png)
![]() 1 |
864329 - CARCASA FARO CROSS CITY 125CC More informationQuantity required : 1 |
||||||
![]() 2 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
![]() 3 |
|
||||||
![]() 4 |
863605 - SUPPORT More informationQuantity required : 1 |
||||||
![]() 5 |
863606 - SUPPORT More informationQuantity required : 1 |
||||||
![]() 6 |
00H01501701 - BOULON BOMBEE ALLEN 6M100X16 More informationQuantity required : 1 |
||||||
![]() 7 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
||||||
![]() 8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
![]() 9 |
86368701WNB - CARTELA SOPTE.CARC.FARO CR.CITY (C) More informationQuantity required : 1 |
||||||
![]() 10 |
861178 - TOR.M6X16 INOX C/ABOMBADA MULHACEN More informationQuantity required : 1 |
||||||
![]() 11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
![]() 12 |
863415 - CTO.FARO DLNTRO.CROSS CITY 125 More informationQuantity required : 1 |
||||||
![]() 13 |
00G01000131 - AMPOULE 12V-35/35 More informationQuantity required : 1 |
||||||
![]() 14 |
862415 - RESSORT More informationQuantity required : 1 |
||||||
![]() 15 |
862414 - PROTECTION More informationQuantity required : 1 |
||||||
![]() 16 |
00H01003131 - TUBE PHARE More informationQuantity required : 1 |
||||||
![]() 17 |
00H01503701 - VIS M6X25 More informationQuantity required : 1 |
||||||
![]() 18 |
00D01600941 - SILENBLOC More informationQuantity required : 1 |
||||||
![]() 19 |
00N01001821 - CASQ.DT.SOPTE.FARO More informationQuantity required : 1 |
||||||
![]() 20 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001- More informationQuantity required : 1 |
||||||
![]() 21 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
![]() 22 |
00G02301501 - RESSORT PHARE AVANT More informationQuantity required : 1 |
||||||
![]() 23 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
![]() 24 |
00H01704311 - CLIGNOTANTS AR. GAUCHE More informationQuantity required : 1 |
||||||
![]() 24 |
FLASHER- FRONT LEFT/REAR RIGHT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863009 More informationQuantity required : 1 |
||||||
![]() 25 |
FLASHER- FRONT RIGHT/REAR LEFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -863008 More informationQuantity required : 1 |
||||||
![]() 25 |
00H01706021 - GLIGNOTEURS AR. DROITE More informationQuantity required : 1 |
||||||
![]() 26 |
00002061011 - VIS A TETE CREUSE 6M100X10. More informationQuantity required : 1 |
||||||
![]() 27 |
00031106000 - RONDELLE PLATE D6 More informationQuantity required : 1 |
||||||
![]() 28 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
![]() 29 |
00004055000 - VIS 5X80X50 More informationQuantity required : 1 |
||||||
![]() 29 |
00011031401 - VIS TARAUD 3,6X14 NOIR CL89H More informationQuantity required : 1 |
||||||
![]() 29 |
AP8224470 - VIS More informationQuantity required : 1 |
||||||
![]() 30 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
![]() 30 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
![]() 31 |
|
||||||
![]() 32 |
TAILLIGHT- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H01009321 More informationQuantity required : 1 |
||||||
![]() 33 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
![]() 34 |
SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020- More informationQuantity required : 1 |
||||||
![]() 35 |
SPACER-RING NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00D01500471- More informationQuantity required : 1 |
||||||
![]() 36 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 4 |
||||||
![]() 37 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 1 |
||||||
![]() 38 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
![]() 39 |
00H05700471 - FEU REGISTRE More informationQuantity required : 1 |
||||||
![]() 40 |
00F01701191 - SUPL.GLIGNOTEURS More informationQuantity required : 1 |
||||||
![]() 41 |
00H00502901 - PROTECTEUR More informationQuantity required : 1 |
