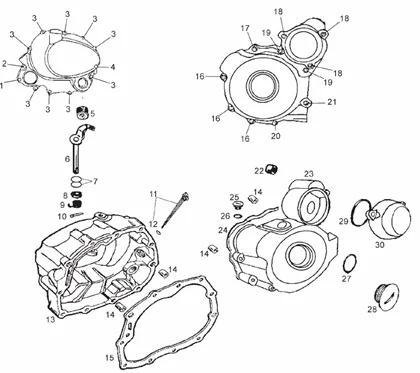

Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)

Vues éclatées : 22 CARTERS

Carters

Search

1

	P2R reference	190341
	Maker reference	862866

862866 - VIS

More information

Quantity required : 1

2

	P2R reference	190200
	Maker reference	862869

862869 - VIS

More information

Quantity required : 1

3

	P2R reference	190342
	Maker reference	862870

862870 - VIS

More information

Quantity required : 1

4

	P2R reference	190325
	Maker reference	862871

862871 - VIS

More information

Quantity required : 1

5

	P2R reference	190343
	Maker reference	862778

862778 - BOUCHON NIVEAU HUILE

More information

Quantity required : 1

6

	P2R reference	190344
	Maker reference	862790

862790 - LEVIER EMBRAYAGE

More information

Quantity required : 1

7

	P2R reference	190345
	Maker reference	862681

862681 - BAGUE

More information

Quantity required : 1

8

	P2R reference	190346
	Maker reference	862826

862826 - JOINT SPI

More information

Quantity required : 1

9

	P2R reference	190347
	Maker reference	862787

862787 - RESSORT

More information

Quantity required : 1

10

	P2R reference	190348
	Maker reference	862795

862795 - AXE

More information

Quantity required : 1

11

	P2R reference	190349
	Maker reference	862886

862886 - BOUCHON

More information

Quantity required : 1

12

	P2R reference	190350
	Maker reference	862673

862673 - BAGUE

More information

Quantity required : 1

13

	P2R reference	190351
	Maker reference	862839

862839 - TAPA CARTER DERECHA

More information

Quantity required : 1

14

	P2R reference	190204
	Maker reference	862722

862722 - GOUPILLE

More information

Quantity required : 1

15

	P2R reference	190352
	Maker reference	862773

862773 - JOINT

More information

Quantity required : 1

16

	P2R reference	190341
	Maker reference	862866

862866 - VIS

More information

Quantity required : 1

17

	P2R reference	190200
	Maker reference	862869

862869 - VIS

More information

Quantity required : 1

18

	P2R reference	190209
	Maker reference	862863

862863 - VIS

More information

Quantity required : 1

19

	P2R reference	190353
	Maker reference	862872

862872 - VIS

More information

Quantity required : 1

20

	P2R reference	190342
	Maker reference	862870

862870 - VIS

More information

Quantity required : 1

21

	P2R reference	190320
	Maker reference	862873

862873 - VIS

More information

Quantity required : 1

22

	P2R reference	194692
	Maker reference	862729

862729 - COJINETE

More information

Quantity required : 1

23

	P2R reference	190356
	Maker reference	862840

862840 - TAPA CARTER IZQUIERDA

More information

Quantity required : 1

24

	P2R reference	190357
	Maker reference	862774

862774 - JOINT

More information

Quantity required : 1

25

	P2R reference	190358
	Maker reference	862848

862848 - BOUCHON

More information

Quantity required : 1

26

	P2R reference	190359
	Maker reference	862672

862672 - BAGUE

More information

Quantity required : 1

27

	P2R reference	190360
	Maker reference	862674

862674 - BAGUE

More information

Quantity required : 1

28

	P2R reference	190361
	Maker reference	862849

862849 - BOUCHON

More information

Quantity required : 1

29

	P2R reference	190362
	Maker reference	862677

862677 - BAGUE

More information

Quantity required : 1

30

	P2R reference	190363
	Maker reference	862844

862844 - COUVERCLE

More information

Quantity required : 1
