Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Iniezione 1000 1990-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

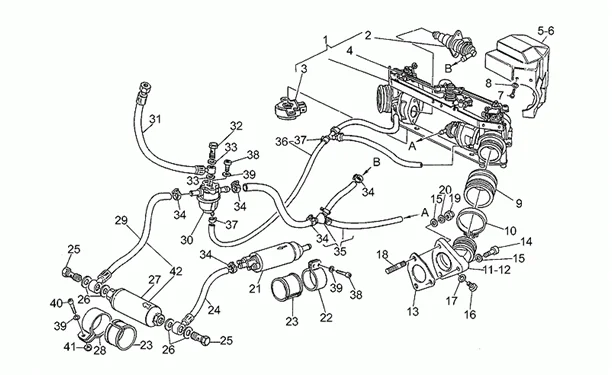

Chassis : 33.38 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/482/California_III_Iniezione_1000_1990-1993_33.38.PNG)
2 |
GU30115730 - INJECTEUR More informationQuantity required : 2 |
||||||
|
3 |
GU30530501 - DETEC.CORPS PAPILLON More informationQuantity required : 1 |
||||||
|
4 |
GU29530562 - TIRANT More informationQuantity required : 2 |
||||||
|
5 |
GU29113360 - COUVERCLE More informationQuantity required : 1 |
||||||
|
6 |
GU29113460 - COUVERCLE G More informationQuantity required : 1 |
||||||
|
7 |
GU98612110 - VIS More informationQuantity required : 4 |
||||||
|
8 |
GU95007204 - RONDELLE More informationQuantity required : 4 |
||||||
|
10 |
GU93305060 - COLLIER 60X62X10 More informationQuantity required : 4 |
||||||
|
14 |
GU98680330 - VIS TCEI M6X30 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
15 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 6 |
||||||
|
16 |
GU98326009 - VIS More informationQuantity required : 2 |
||||||
|
17 |
GU95100116 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
GU96506039 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
19 |
GU92781062 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
20 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
21 |
GU29107261 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
22 |
GU29107360 - COLLIER More informationQuantity required : 1 |
||||||
|
23 |
GU29105860 - PROTECTION CAOUTCH. More informationQuantity required : 2 |
||||||
|
25 |
GU29109161 - VIS CREUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
26 |
GU12006400 -JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/1/8/img/129418.JPG)
26 |
GU18161150 - GARNITURE 14,25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/3/5/1/img/130351.jpg)
27 |
FUEL FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA 1994>2002 (M14X12) -GU29106061- More informationQuantity required : 1 |
||||||
|
28 |
GU29113860 - COLLIER More informationQuantity required : 1 |
||||||
|
29 |
GU29108262 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
32 |
GU29107960 - VIS CREUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
33 |
O'RING GASKET FOR OIL PIPE "PIAGGIO GENUINE PART" MOTO-GUZZI V9 2016> -GU12154200- More informationQuantity required : 2 |
||||||
|
34 |
GU93305017 - COLLIER More informationQuantity required : 8 |
||||||
|
39 |
GU95100119 - RONDELLE More informationQuantity required : 6 |
||||||
|
40 |
GU98612320 - VIS More informationQuantity required : 1 |
||||||
|
41 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
