Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California III Iniezione 1000 1990-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

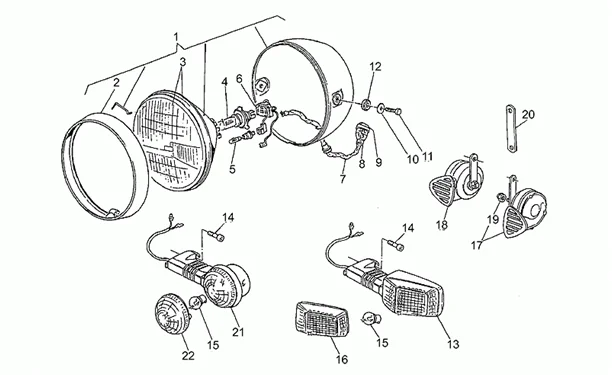

Chassis : 33.08 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/482/California_III_Iniezione_1000_1990-1993_33.08.PNG)
1 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
2 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
3 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
4 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
5 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
8 |
GU17755760 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
GU17755860 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
10 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
GU98054520 - VIS M10X20 More informationQuantity required : 2 |
||||||
|
12 |
GU14439800 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
14 |
GU98612320 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
16 |
GU23753710 - VITRE CLIGNOTANT More informationQuantity required : 1 |
||||||
|
18 |
GU29743753 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
19 |
GU92602206 - ECROU More informationQuantity required : 2 |
