Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1000 California II 1000 1983-1986
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

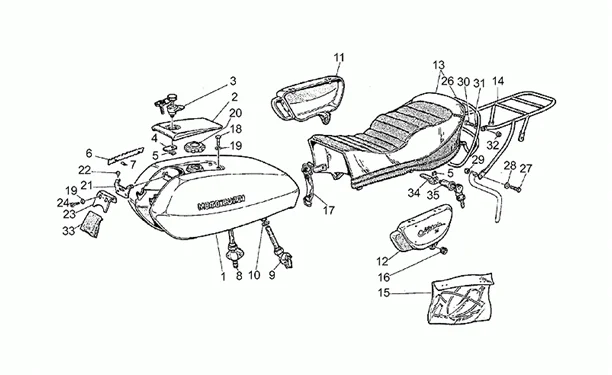

Chassis : 33.14 RÉSERVOIR-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/479/California_II_1000_1983-1986_33.14.PNG)
2 |
GU23104090 - COUVERCLE More informationQuantity required : 1 |
||||||
|
4 |
GU18105001 - LOQUETEAU More informationQuantity required : 1 |
||||||
|
5 |
GU19104950 - COLLIER More informationQuantity required : 2 |
||||||
|
7 |
GU14105100 - AGRAFE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/1/7/img/129317.jpg)
9 |
LEFT FUEL TAP "PIAGGIO GENUINE PART" MOTO-GUZZI 850 T3, T5, 1000 CALIFORNIA, GT, LE-MANS, SP -GU17105461- More informationQuantity required : 1 |
||||||
|
10 |
GU90714103 - JOINT More informationQuantity required : 2 |
||||||
|
16 |
GU91551082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
17 |
GU14102600 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.JPG)
19 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 4 |
||||||
|
20 |
GU28103946 - BOUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
22 |
GU93180706 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
27 |
GU98052490 - VIS More informationQuantity required : 2 |
||||||
|
28 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
29 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
30 |
GU98054422 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
31 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
32 |
GU92630108 - ECROU More informationQuantity required : 2 |
