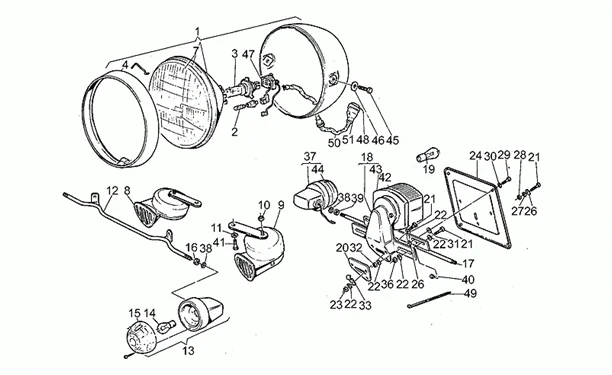

Chassis : 33.03 PHARE AVANT-KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/479/California_II_1000_1983-1986_33.03.PNG)
1 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
1 |
GU29740530 - PROJECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
2 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
3 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
|
4 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
7 |
GU29740500 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
8 |
GU29743753 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
10 |
GU92781062 - ECROU More informationQuantity required : 2 |
||||||
|
11 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
16 |
GU92602411 - ECROU More informationQuantity required : 2 |
||||||
|
17 |
GU18753501 - SUPP.CLIGN.ET PL.POL More informationQuantity required : 1 |
||||||
|
19 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
||||||
|
20 |
GU10475900 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
21 |
GU98084316 - VIS M6X16 More informationQuantity required : 6 |
||||||
|
22 |
GU95000206 - RONDELLE More informationQuantity required : 8 |
||||||
|
23 |
GU92630106 - ECROU M6X1 More informationQuantity required : 6 |
||||||
|
24 |
GU10474600 - PLAQUE PORT.PL.DE PO More informationQuantity required : 1 |
||||||
|
26 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
27 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
|
28 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
29 |
GU98054220 - VIS More informationQuantity required : 2 |
||||||
|
30 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
31 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
32 |
GU92630105 - ECROU More informationQuantity required : 2 |
||||||
|
33 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
33 |
GU93301313 - GUIDE CABLE More informationQuantity required : 2 |
||||||
|
36 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/8/0/img/129180.jpg)
38 |
GU14018400 - RONDELLE 10,5X21X1 More informationQuantity required : 4 |
||||||
|
39 |
GU19742050 - ECROU More informationQuantity required : 2 |
||||||
|
41 |
GU98054416 - VIS M8X16 More informationQuantity required : 2 |
||||||
|
45 |
GU98054520 - VIS M10X20 More informationQuantity required : 1 |
||||||
|
46 |
GU95100255 - RONDELLE More informationQuantity required : 1 |
||||||
|
48 |
GU17755860 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
49 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 2 |
||||||
|
51 |
GU17755760 - CAPUCHON More informationQuantity required : 1 |
All the exploded views of this vehicle
-
