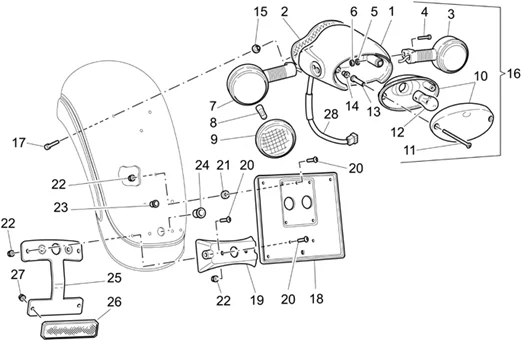

Chassis : 33.31 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/476/California_Classic_Touring_1100_2006-2008_33.31.PNG)
1 |
977276 - SUPPORT PHARE AR More informationQuantity required : 1 |
||||||
|
1 |
977277 - SUPPORT PHARE AR More informationQuantity required : 1 |
||||||
|
1 |
GU03475813 - CORPO FANALE POST.ROSSO More informationQuantity required : 1 |
||||||
|
1 |
GU03475830 - CORPO FANALE POST.GREZZO More informationQuantity required : 1 |
||||||
|
1 |
GU03475860 - CORPO FANALE POST.NERO More informationQuantity required : 1 |
||||||
|
2 |
GU03475931 - GOMMA More informationQuantity required : 1 |
||||||
|
3 |
GU03751630 - CLIGNOTANT ARRIERE GOUCHE More informationQuantity required : 1 |
||||||
|
4 |
GU98682320 - VIS M6X20 More informationQuantity required : 2 |
||||||
|
5 |
GU95001206 - RONDELLE More informationQuantity required : 2 |
||||||
|
6 |
GU92660600 - ECROU More informationQuantity required : 2 |
||||||
|
7 |
GU03751631 - CLIGNOTANT ARRIERE DROIT More informationQuantity required : 1 |
||||||
|
8 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 1 |
||||||
|
9 |
AP8124111 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
|
10 |
GU03740930 - FEU ARRIERE More informationQuantity required : 1 |
||||||
|
11 |
GU98680150 - VIS M4X50 More informationQuantity required : 2 |
||||||
|
12 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 2 |
||||||
|
13 |
GU03741230 - DOUILLE More informationQuantity required : 2 |
||||||
|
14 |
GU93231604 - DOUILLE ANTI VIBRATION More informationQuantity required : 2 |
||||||
|
15 |
GU03742030 - BAGUE More informationQuantity required : 3 |
||||||
|
16 |
977233 - GRUPPO OTTICO COMP CLASSIC ROSSO More informationQuantity required : 1 |
||||||
|
16 |
977234 - GRUPPO OTTICO COMP CLASSIC BIANCO More informationQuantity required : 1 |
||||||
|
16 |
GU03758471 - GROUPE OPTIQUE ARRIERE NOIR More informationQuantity required : 1 |
||||||
|
16 |
GU03758472 - GR.OPTIQUE ARRIERE ROUGE More informationQuantity required : 1 |
||||||
|
17 |
GU98230518 - VIS More informationQuantity required : 3 |
||||||
|
18 |
GU01474630 - PORTATARGA More informationQuantity required : 1 |
||||||
|
19 |
GU03474530 - SUPPORTO PORTATARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
20 |
GU98370515 - VIS More informationQuantity required : 5 |
||||||
|
21 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
22 |
GU92650035 - ECROU BRIDE More informationQuantity required : 5 |
||||||
|
23 |
GU03438830 - TAPPO More informationQuantity required : 2 |
||||||
|
24 |
GU03438831 - TAPPO More informationQuantity required : 1 |
||||||
|
25 |
GU03475330 - SUPPORTO More informationQuantity required : 1 |
||||||
|
26 |
GU31745865 - CATADIOPTRE More informationQuantity required : 1 |
||||||
|
27 |
GU92650034 - ECROU More informationQuantity required : 2 |
||||||
|
28 |
Cablage feu AR |
