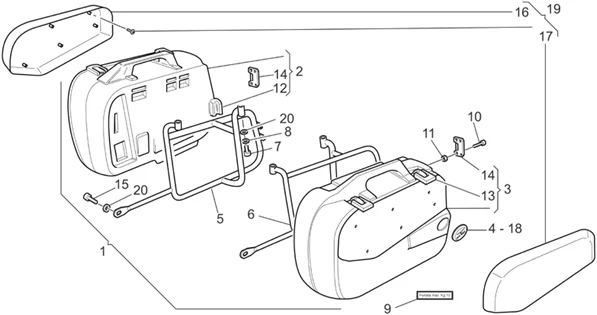

Chassis : 33.12 TOURING SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/476/California_Classic_Touring_1100_2006-2008_33.12.PNG)
1 |
Suitcase kit 40 L |
||||||
|
2 |
GU03482570 - VALIGIA DX 40 L More informationQuantity required : 1 |
||||||
|
3 |
GU03485770 - VALIGIA SX 40 L More informationQuantity required : 1 |
||||||
|
4 |
GU03482070 - DEC."MOTOGUZZI" DX More informationQuantity required : 1 |
||||||
|
5 |
GU03485070 - SUPPORTO VALIGIA DX More informationQuantity required : 1 |
||||||
|
6 |
GU03486570 - SUPPORTO VALIGIA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
7 |
GU98680445 - VIS M8X45 More informationQuantity required : 2 |
||||||
|
8 |
GU95100253 - RONDELLE More informationQuantity required : 2 |
||||||
|
9 |
GU29482400 - PLAQUE KG.10 More informationQuantity required : 2 |
||||||
|
10 |
GU98350318 - VIS M6X18 More informationQuantity required : 4 |
||||||
|
11 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
12 |
GU03484000 - SERRATURA More informationQuantity required : 2 |
||||||
|
13 |
GU03484001 - SERRATURA More informationQuantity required : 4 |
||||||
|
14 |
GU00979726 - PIASTRINA FERMO More informationQuantity required : 2 |
||||||
|
15 |
GU98680445 - VIS M8X45 More informationQuantity required : 4 |
||||||
|
16 |
977278 - INSERTO BORSA DX ROSSO CALIF 2006 More informationQuantity required : 1 |
||||||
|
16 |
977280 - INSERTO BORSA DX BIANCO/GRIGIO CALIF 200 More informationQuantity required : 1 |
||||||
|
16 |
GU03484470 - INSERTO VALIGIA DX GREZZO More informationQuantity required : 1 |
||||||
|
16 |
GU03484471 - INSERTO VALIGIA DX NERO More informationQuantity required : 1 |
||||||
|
17 |
977279 - INSERTO BORSA SX ROSSO CALIF 2006 More informationQuantity required : 1 |
||||||
|
17 |
977281 - INSERTO BORSA SX BIANCO/GRIGIO CALIF 200 More informationQuantity required : 1 |
||||||
|
17 |
GU03484570 - INSERTO VALIGIA SX GREZZO More informationQuantity required : 1 |
||||||
|
17 |
GU03484571 - INSERTO VALIGIA SX NERO More informationQuantity required : 1 |
||||||
|
18 |
GU03482071 - DEC."MOTOGUZZI" SX More informationQuantity required : 1 |
||||||
|
19 |
Kit inserts rouge |
||||||
|
19 |
Kit inserts blanc |
||||||
|
19 |
GU03484370 - KIT INSERTS VALISES NON PEINTS More informationQuantity required : 1 |
||||||
|
19 |
Kit inserts noir |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
20 |
658837 - RONDELLE More informationQuantity required : 6 |
