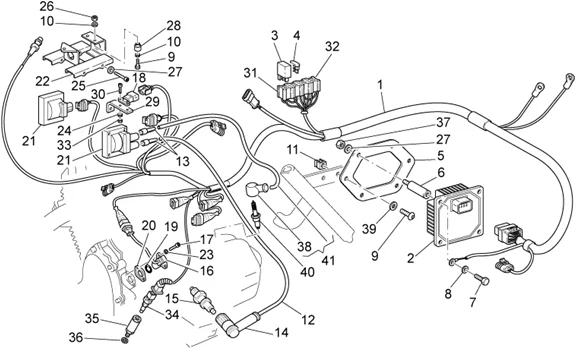

Chassis : 33.27 INSTALLATION ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/475/California_Aquila_Nera_1100_2009-2011_33.27.PNG)
1 |
GU03725875 - CABLES INJECTION More informationQuantity required : 1 |
||||||
|
2 |
977235 - CENTRALINA ACC.INIEZ. VINTAGE More informationQuantity required : 1 |
||||||
|
3 |
GU01732530 - RELE SIEMENS A302B1005 More informationQuantity required : 2 |
||||||
|
4 |
GU28742558 - FUSIBLE 5A More informationQuantity required : 1 |
||||||
|
4 |
GU28742559 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
|
5 |
GU03729230 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
6 |
GU93221330 - BLOC More informationQuantity required : 4 |
||||||
|
7 |
GU98084110 - VIS M4X10 More informationQuantity required : 4 |
||||||
|
8 |
GU95008304 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
GU98682310 - VIS More informationQuantity required : 5 |
||||||
|
10 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 6 |
||||||
|
11 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/7/6/img/128276.jpg)
12 |
HIGH TENSION PLUG LEAD "PIAGGIO GENUINE PART" (LONG) MOTO-GUZZI 1100 CALIFORNIA -GU03718350 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
13 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/7/5/img/128275.jpg)
14 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2018>/COMMON TO ALL THE RANGE MOTO-GUZZI -GU03717450 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/5/img/130935.jpg)
15 |
GU30717061 - BOUGIE NGK BPR6ES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
16 |
T.D.C. SENSOR "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU01721600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
17 |
GU98682212 - VIS M5X12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
18 |
GU30729330 - DETEC.TEMPER.AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
19 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180 More informationQuantity required : 1 |
||||||
|
20 |
GU01722700 - GUARNIZIONE 0,3MM More informationQuantity required : 2 |
||||||
|
20 |
GU01722701 - GUARNIZIONE 0,4MM More informationQuantity required : 2 |
||||||
|
20 |
GU01722702 - GUARNIZIONE 0,6MM More informationQuantity required : 2 |
||||||
|
20 |
GU01722703 - GUARNIZIONE 0,8MM More informationQuantity required : 2 |
||||||
|
20 |
GU01722704 - GUARNIZIONE 1MM More informationQuantity required : 2 |
||||||
|
20 |
GU01722705 - GUARNIZIONE 1,5MM More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
20 |
GU29722760 - JOINT 0,5 MM More informationQuantity required : 1 |
||||||
|
21 |
GU05716530 - BOBINE HT More informationQuantity required : 2 |
||||||
|
22 |
GU03716770 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
23 |
GU95008205 - RONDELLE 5,3X10X0,8 More informationQuantity required : 2 |
||||||
|
24 |
GU95120033 - VIS More informationQuantity required : 2 |
||||||
|
25 |
GU98682125 - VIS M4X25 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
26 |
AP8150026 - ECROU More informationQuantity required : 3 |
||||||
|
26 |
AP8150026 - ECROU More informationQuantity required : 3 |
||||||
|
27 |
GU95021204 - RONDELLE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
28 |
SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU93222023 More informationQuantity required : 3 |
||||||
|
29 |
GU30728230 - SUPPORT DETECTEUR More informationQuantity required : 1 |
||||||
|
30 |
GU98680110 - VIS More informationQuantity required : 2 |
||||||
|
31 |
GU30732200 - BOITE A FUSIBLES More informationQuantity required : 1 |
||||||
|
32 |
GU30732400 - SUPPORT RELAIS More informationQuantity required : 2 |
||||||
|
33 |
GU92606003 - ECROU M3 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
34 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.jpg)
35 |
GU03163330 - SUPPORTO SENSORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
36 |
GU95008210 - RONDELLE 10,2X18X2 More informationQuantity required : 4 |
||||||
|
37 |
GU92630204 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/4/img/108534.jpg)
38 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO, 1100 CALIFORNIA, GRISO -GU06717400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
39 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/6/5/3/img/124653.jpg)
40 |
SPARK PLUG PMR8B "PIAGGIO GENUINE PART" 1200 MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO, 1100 CALIFORNIA, BELLAGIO -GU05717030 More informationQuantity required : 2 |
||||||
|
41 |
HIGH TENSION PLUG LEAD "PIAGGIO GENUINE PART" (SHORT) MOTO-GUZZI 1100 CALIFORNIA -977388- More informationQuantity required : 2 |
