Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California Aquila Nera 1100 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

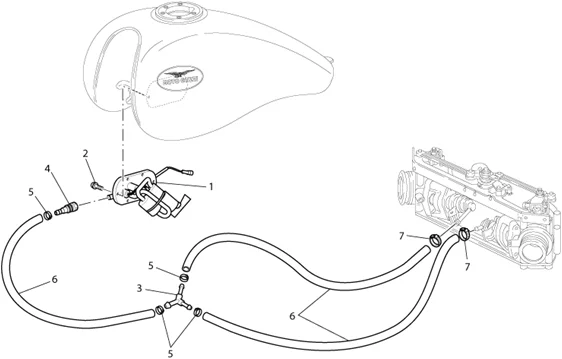

Chassis : 33.13 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/475/California_Aquila_Nera_1100_2009-2011_33.13.PNG)
1 |
887424 - POMPA CARBURANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
2 |
AP8152273 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
3 |
GU29106860 - RACCORD 3 VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/7/img/73407.jpg)
4 |
FUEL HOSE JOINT "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 BREVA, CALIFORNIA, V11, 940 BELLAGIO -GU01106692 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133_20251023145539.jpg)
5 |
GU28157950 - COLLIER More informationQuantity required : 4 |
||||||
|
6 |
856064 - TUBO SAE J30 R11-A O R12-5/16" More informationQuantity required : 1 |
||||||
|
6 |
GU00823952080 - TUBO BENZINA SAE J30 R9 8X14 More informationQuantity required : 1 |
||||||
|
7 |
GU93306017 - COLLIER More informationQuantity required : 2 |
