Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring SE ABS 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

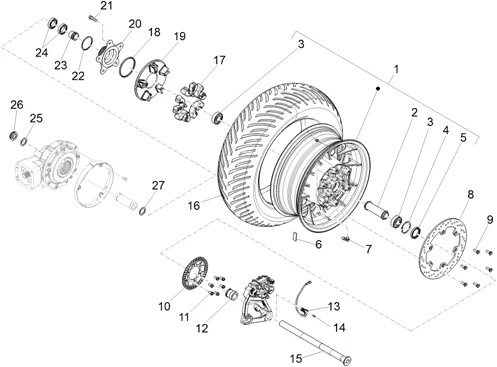

Roues : 05.020 ROUE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/473/California_1400_Touring_SE_ABS_2015_05.020.PNG)
1 |
887529 - RUOTA POSTERIORE CON CUSCINETTI More informationQuantity required : 1 |
||||||
|
2 |
887530 - DISTANZIALE RUOTA POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/2/img/71272.jpg)
3 |
REAR WHEEL BEARING (25X52X15 - 6205)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8110093- More informationQuantity required : 2 |
||||||
|
4 |
AP8125839 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
5 |
AP8125838 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
6 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
7 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" GAMME MOTO-GUZZI -GU03617710- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/2/6/img/99426.jpg)
8 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" MOTO-GUZZI 1400 CALIFORNIA, AUDACE, ELDORADO -887489- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/8/img/130868.jpg)
9 |
SCREW - REAR DISC BRAKE FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30611460- More informationQuantity required : 6 |
||||||
|
10 |
887875 - RUOTA FONICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285- More informationQuantity required : 6 |
||||||
|
12 |
887495 - DISTANZIALE EST RUOTA POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.JPG)
13 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
13 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
14 |
AP8152273 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
15 |
886967 - PERNO RUOTA POSTERIORE More informationQuantity required : 1 |
||||||
|
16 |
887575 - COPERTURA POST 200/60 -16X6 More informationQuantity required : 1 |
||||||
|
17 |
B064290 - GOMMINO PARASTRAPPI More informationQuantity required : 5 |
||||||
|
18 |
GU90706664 - BAGUE More informationQuantity required : 1 |
||||||
|
19 |
887311 - DISCO TRASCINAMENTO PARASTRAPPI More informationQuantity required : 1 |
||||||
|
20 |
2B000090 - FLANGIA DISCO PARASTRAPPI More informationQuantity required : 1 |
||||||
|
21 |
B063849 - VITE TE FL M10X30 10.9 More informationQuantity required : 5 |
||||||
|
22 |
887518 - ANELLO OR 56.74X3.53 More informationQuantity required : 1 |
||||||
|
23 |
887461 - DISTANZIALE PARASTRAPPI More informationQuantity required : 1 |
||||||
|
24 |
887517 - CUSCINETTO A SFERE 61906 2RS1 30X47X9 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/2/img/132672.JPG)
25 |
GU95005325 - RONDELLE 25,2X36X1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
26 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152324- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
27 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152323- More informationQuantity required : 1 |
