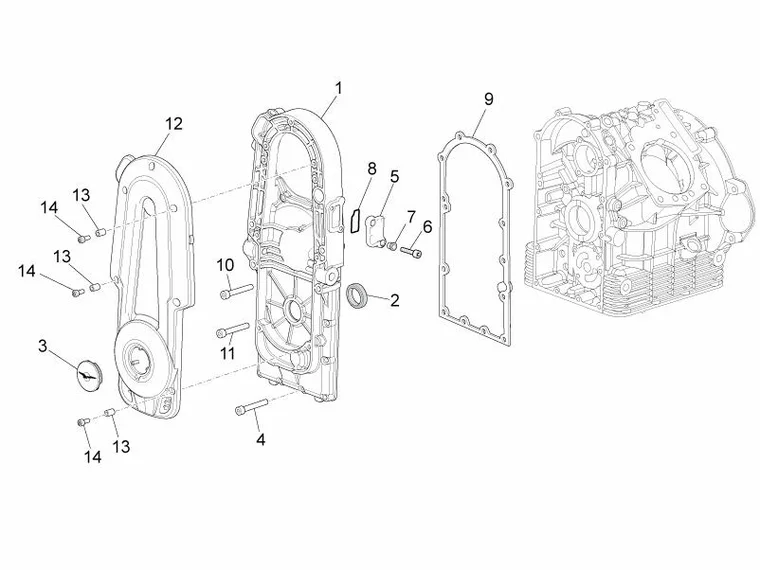

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring SE ABS 2015 MOTO-GUZZI

Moteur : 03.040 CARTERS I
Carters i
Search
82999R - COPERCHIO DISTRIBUZIONE

1
P2R reference P2R reference 98310
Maker reference Maker reference 82999R

82999R - COPERCHIO DISTRIBUZIONE

More information

Quantity required : 1
GASKET RING- 22X35X7 FOR TIMING SYSTEM HOUSING "PIAGGIO GENUINE PART" MOTO-GUZZI 1400 CALIFORNIA, 850-1200 BREVA, STELVIO, NORGE -GU90412237-

2
P2R reference P2R reference 132200
Maker reference Maker reference GU90412237

GASKET RING- 22X35X7 FOR TIMING SYSTEM HOUSING "PIAGGIO GENUINE PART" MOTO-GUZZI 1400 CALIFORNIA, 850-1200 BREVA, STELVIO, NORGE -GU90412237-

More information

Quantity required : 1
GU05002130 - BOUCHON

3
P2R reference P2R reference 128528
Maker reference Maker reference GU05002130

GU05002130 - BOUCHON

More information

Quantity required : 1
GU98620335 - VIS M6X35

4
P2R reference P2R reference 141235
Maker reference Maker reference GU98620335

GU98620335 - VIS M6X35

More information

Quantity required : 1
976554 - TAPPO BLOW-BY FLANGIA DISTRIBUZIONE

5
P2R reference P2R reference 99871
Maker reference Maker reference 976554

976554 - TAPPO BLOW-BY FLANGIA DISTRIBUZIONE

More information

Quantity required : 1
GU98682320 - VIS M6X20

6
P2R reference P2R reference 133181
Maker reference Maker reference GU98682320

GU98682320 - VIS M6X20

More information

Quantity required : 2
GU91120607 - BAGUE 6,4X8,4X10,5

7
P2R reference P2R reference 132279
Maker reference Maker reference GU91120607

GU91120607 - BAGUE 6,4X8,4X10,5

More information

Quantity required : 2
177408 - BAGUE

8
P2R reference P2R reference 65776
Maker reference Maker reference 177408

177408 - BAGUE

More information

Quantity required : 1
976478 - GUARNIZIONE MET PER COP.DISTRIBUZIONE

9
P2R reference P2R reference 99854
Maker reference Maker reference 976478

976478 - GUARNIZIONE MET PER COP.DISTRIBUZIONE

More information

Quantity required : 1
GU98620455 - VIS

10
P2R reference P2R reference 133123
Maker reference Maker reference GU98620455

GU98620455 - VIS

More information

Quantity required : 4
GU98680330 - VIS TCEI M6X30

11
P2R reference P2R reference 73570
Maker reference Maker reference GU98680330

GU98680330 - VIS TCEI M6X30

More information

Quantity required : 9
GU05001630 - COUVERCLE ALTERNATEUR GRIS

12
P2R reference P2R reference 128527
Maker reference Maker reference GU05001630

GU05001630 - COUVERCLE ALTERNATEUR GRIS

More information

Quantity required : 1
GU91120606 - BAGUE 6,8X8,8X5,8

13
P2R reference P2R reference 132278
Maker reference Maker reference GU91120606

GU91120606 - BAGUE 6,8X8,8X5,8

More information

Quantity required : 6
GU98682316 - VIS M6X16

14
P2R reference P2R reference 133179
Maker reference Maker reference GU98682316

GU98682316 - VIS M6X16

More information

Quantity required : 6
