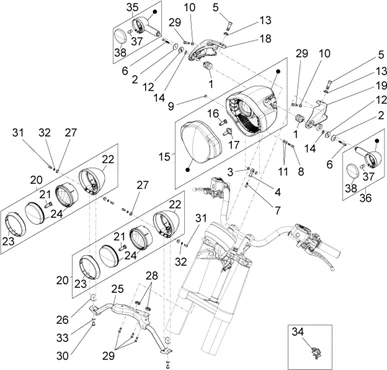

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA)

	P2R reference	99502
	Maker reference	887698

887698 - DISTANZIALE ROTAZIONE FANALE ANT

	P2R reference	101032
	Maker reference	B063174

B063174 - BUSSOLA ROTAZIONE FANALE

	P2R reference	132277
	Maker reference	GU91120605

GU91120605 - BAGUE

	P2R reference	99597
	Maker reference	887921

887921 - TESTA A SNODO M6

	P2R reference	133102
	Maker reference	GU98612320

GU98612320 - VIS

	P2R reference	71816
	Maker reference	AP8150045

AP8150045 - VIS

	P2R reference	71852
	Maker reference	AP8150285

SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285-

	P2R reference	71944
	Maker reference	AP8152281

SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

	P2R reference	73548
	Maker reference	GU92630206

GU92630206 - ECROU M6X1

	P2R reference	71807
	Maker reference	AP8150014

AP8150014 - RONDELLE

	P2R reference	71808
	Maker reference	AP8150015

AP8150015 - RONDELLE

	P2R reference	99501
	Maker reference	887697

887697 - RONDELLA CURVATA

	P2R reference	71833
	Maker reference	AP8150178

AP8150178 - RONDELLE

	P2R reference	63810
	Maker reference	0064105

CIRCLIP FOR DRIVE PULLEY "PIAGGIO GENUINE PART" PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 -006410-

	P2R reference	99407
	Maker reference	887453

887453 - FANALE ANTERIORE

	P2R reference	66272
	Maker reference	294353

294353 - AMPOULE 12V-55W H7

	P2R reference	66270
	Maker reference	294278

294278 - AMPOULE 12V 55W H3

	P2R reference	98048
	Maker reference	2B000151

2B000151 - SUPPORTO FANALE ANT DX

	P2R reference	98049
	Maker reference	2B000152

2B000152 - SUPPORTO FANALE ANT SX

	P2R reference	101085
	Maker reference	B063295

B063295 - FENDINEBBIA

	P2R reference	67184
	Maker reference	580734

LIGHT BULB 12V-35W H8 "PIAGGIO GENUINE PART" 125-350-500 X10, 50 NRG POWER/GILERA 50-125 RUNNER, 500 FUOCO/APRILIA 1000 RSV-4 -580734-

	P2R reference	101086
	Maker reference	B063296

B063296 - (*)CALOTTA FENDINEBBIA

	P2R reference	101087
	Maker reference	B063297

B063297 - (*)GHIERA FENDINEBBIA

	P2R reference	101104
	Maker reference	B063343

B063343 - (*)GRUPPO OTTICO FENDINEBBIA

	P2R reference	99658
	Maker reference	887997

887997 - TELAIETTO FENDINEBBIA

	P2R reference	101162
	Maker reference	B063756

B063756 - BLOCCHETTO DI REGOLAZIONE

	P2R reference	72319
	Maker reference	AP8221349

AP8221349 - "DOUILLE EN ""T"""

	P2R reference	71407
	Maker reference	AP8120594

AP8120594 - SILENTBLOC

	P2R reference	133181
	Maker reference	GU98682320

GU98682320 - VIS M6X20

	P2R reference	67255
	Maker reference	582428

582428 - VIS

	P2R reference	133057
	Maker reference	GU98370614

GU98370614 - VIS M6X14

	P2R reference	102376
	Maker reference	GU03013800

GU03013800 - ROS EL OND IX 6.4X12X0.5

	P2R reference	71870
	Maker reference	AP8150376

SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376-

	P2R reference	72315
	Maker reference	AP8221310

AP8221310 - PASSE-CABLE

	P2R reference	100963
	Maker reference	B063028

B063028 - INDICATORE DIREZIONE ANT DX

	P2R reference	100964
	Maker reference	B063029

B063029 - INDICATORE DIREZIONE ANT SX

	P2R reference	71603
	Maker reference	AP8127489

AP8127489 - LAMPE RY10W 12V

	P2R reference	98189
	Maker reference	2D000007

2D000007 - TRASPARENTE PER FRECCIA ANTERIORE
