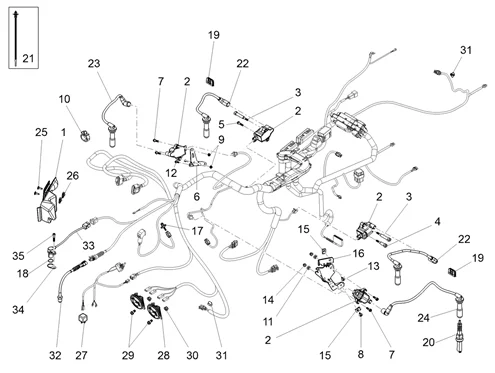

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA)

	P2R reference	99625
	Maker reference	887955

887955 - SCATOLA CONNETTORI DEVIO LUCI

	P2R reference	67947
	Maker reference	641901

IGNITION COIL "PIAGGIO GENUINE PART" 125 FLY3 VALVES, LIBERTY 3 VALVES, VESPA LX 3 VALVES, 125-350 YOURBAN, BEVERLY, X-10 -641901

	P2R reference	101029
	Maker reference	B063162

B063162 - COLONNETTA SUPP COVER

	P2R reference	101184
	Maker reference	B063844

B063844 - COLONNETTA FILETTATA

	P2R reference	71943
	Maker reference	AP8152280

AP8152280 - VIS BRIDE

	P2R reference	101125
	Maker reference	B063508

B063508 - SUPPORTO BOBINA AT

	P2R reference	71944
	Maker reference	AP8152281

SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281-

	P2R reference	99900
	Maker reference	976614

976614 - VITE TCCCE IX M5X15

	P2R reference	73548
	Maker reference	GU92630206

GU92630206 - ECROU M6X1

	P2R reference	67938
	Maker reference	641652

641652 - RESSORT

	P2R reference	151683
	Maker reference	AP8152278

AP8152278 - VIS BRIDE M6X16

	P2R reference	214483
	Maker reference	2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

	P2R reference	71961
	Maker reference	AP8152302
	Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

	P2R reference	71958
	Maker reference	AP8152299

AP8152299 - ECROU AUTOBLOQU.

	P2R reference	71174
	Maker reference	AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

	P2R reference	101157
	Maker reference	B063742

B063742 - SUPPORTO BOBINA AT

	P2R reference	71572
	Maker reference	AP8124936

AP8124936 - DETEC. TEMPER. AIR

	P2R reference	69479
	Maker reference	847180

O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180-

	P2R reference	101010
	Maker reference	B063131

B063131 - GOMMINO CAVI AT

	P2R reference	99296
	Maker reference	887016

SPARK PLUG LMAR8F-9 "PIAGGIO GENUINE PART" MOTO-GUZZI 1400 CALIFORNIA, AUDACE, ELDORADO -887016-

	P2R reference	101218
	Maker reference	B064017

B064017 - FASCETTA CON TESTA A FRECCIA E VENTOSA

	P2R reference	127988
	Maker reference	2D000182

2D000182 - CAPUCHON BOUGIE

	P2R reference	127987
	Maker reference	2D000181

2D000181 - CAPUCHON BOUGIE

	P2R reference	127986
	Maker reference	2D000180

2D000180 - CAPUCHON BOUGIE

	P2R reference	214483
	Maker reference	2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

	P2R reference	71961
	Maker reference	AP8152302
	Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

	P2R reference	71174
	Maker reference	AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

	P2R reference	72329
	Maker reference	AP8224462

RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462-

	P2R reference	70808
	Maker reference	890979

890979 - KLAXON

	P2R reference	73566
	Maker reference	GU98370616

GU98370616 - VIS M6X16

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	70801
	Maker reference	890760

890760 - SUPPORT

	P2R reference	99387
	Maker reference	887421

887421 - SENSORE TEMPERATURA TESTA

	P2R reference	67817
	Maker reference	6389915

SENSOR FOR IGNITION "PIAGGIO GENUINE PART"400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP -6389915-

	P2R reference	101134
	Maker reference	B063592

B063592 - PIASTRINA REGISTRO SENSORE GIRI

	P2R reference	133179
	Maker reference	GU98682316

GU98682316 - VIS M6X16
