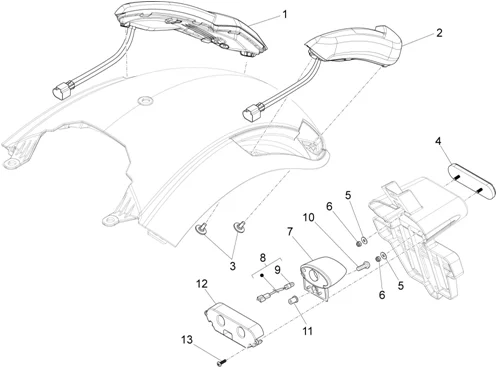

Instruments : 08.030 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/472/California_1400_Touring_ABS_USA-CND_2015_08.030.PNG)
1 |
887536 - FANALE POSTERIORE DX USA More informationQuantity required : 1 |
||||||
|
2 |
887537 - (*)FANALE POSTERIORE SX USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
3 |
SCREW - FOR ROCKER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -976591- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
4 |
UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
5 |
AP8150501 - ROSETTA M4 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
6 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
7 |
NUMBER PLATE LIGHT "PIAGGIO GENUINE PART" COMMON TO THE MOTO APRILIA + MOTO-GUZZI RANGE -85256R- More informationQuantity required : 1 |
||||||
|
8 |
B063432 - LUCE TARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/9/img/71899.JPG)
10 |
AP8150522 - VITE TCB M4X16 INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
11 |
AP8144564 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 1 |
||||||
|
12 |
B063454 - SUPPORTO LUCE TARGA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
13 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
