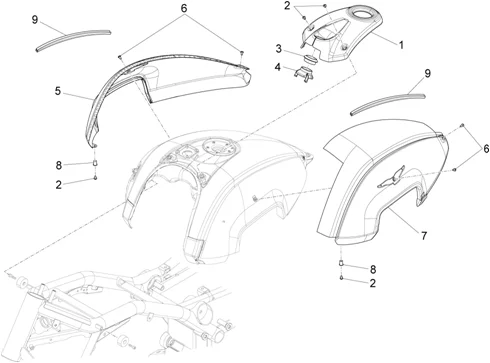

Carrosserie : 02.090 COUVRE-RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/472/California_1400_Touring_ABS_USA-CND_2015_02.090.PNG)
1 |
B063478 - (*)PLANCETTA CHIAVE More informationQuantity required : 1 |
||||||
|
2 |
GU98370516 - VIS M5X16 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/1/img/71601.jpg)
3 |
AP8127461 - JOINT BLOC DEMARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/2/img/70882.jpg)
4 |
898136 - ANTITHEFT ANTENNA More informationQuantity required : 1 |
||||||
|
5 |
2B000034000BM - GUANCIA SERBATOIO DX BIANCO More informationQuantity required : 1 |
||||||
|
5 |
2L000019000XN2 - GUANCIA SERBATOIO DX NERO More informationQuantity required : 1 |
||||||
|
5 |
B063181 - GUANCIA SERBATOIO DX GREZZO More informationQuantity required : 1 |
||||||
|
5 |
2H000560000YR5 - COUVERCLE More informationQuantity required : 1 |
||||||
|
6 |
GU98350210 - VIS TBEI M5X10 More informationQuantity required : 4 |
||||||
|
7 |
2H000561000YR5 - COUVERCLE More informationQuantity required : 1 |
||||||
|
7 |
B063182 - GUANCIA SERBATOIO SX GREZZO More informationQuantity required : 1 |
||||||
|
7 |
2L000020000XN2 - GUANCIA SERBATOIO SX NERO More informationQuantity required : 1 |
||||||
|
7 |
2B000033000BM - GUANCIA SERBATOIO SX BIANCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
8 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
9 |
GU00823931055 - PROFILO GOMMA EPDM More informationQuantity required : 2 |
