Vehicle Exploded View - MOTO-GUZZI BREVA 750 Breva IE 750 2003-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

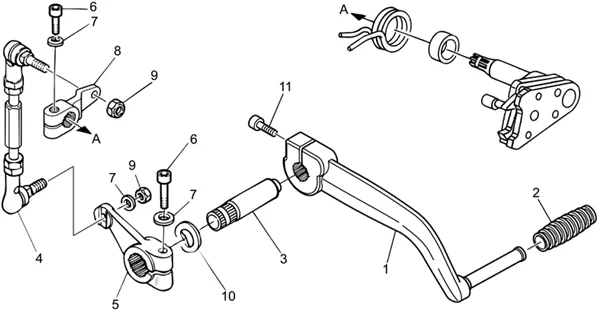

Moteur : 34.17 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_34.17.PNG)
1 |
GU32250911 - LEVIER BOITE DE VITESSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
2 |
GEARBOX SELECTOR RUBBER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA -AP8220189 More informationQuantity required : 1 |
||||||
|
3 |
GU32251610 - GOUJON DE LEVIER More informationQuantity required : 1 |
||||||
|
4 |
GU32257810 - TIRANT POUR BOITE VITESSE CPL. More informationQuantity required : 1 |
||||||
|
5 |
GU32256910 - LEVIER More informationQuantity required : 1 |
||||||
|
6 |
GU98632322 - VIS M6X22 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
7 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 3 |
||||||
|
8 |
GU32258210 - LEVIER DE COMMANDE More informationQuantity required : 1 |
||||||
|
9 |
GU92630707 - ECROU M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
10 |
GU95129260 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/2/img/133182.jpg)
11 |
GU98682322 - VIS M6X22 More informationQuantity required : 1 |
