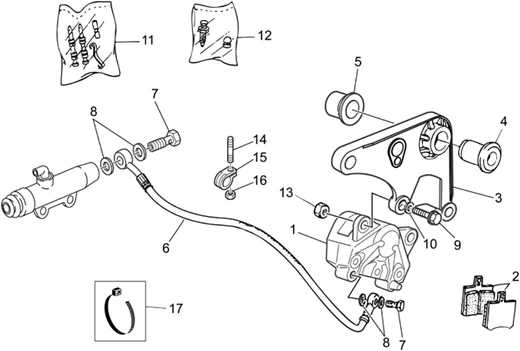

Chassis : 33.38 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_33.38.PNG)
1 |
GU32653010 - PINCE FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/3/4/img/131234.jpg)
2 |
REAR BRAKE PADS -"PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA 2003>2009, 750 NEVADA 2002>, 750 V-7 2008>(PAIR) -GU31654681 More informationQuantity required : 1 |
||||||
|
3 |
GU326358601 - PLAQ.FIX PINCE FREIN More informationQuantity required : 1 |
||||||
|
4 |
GU31634281 - BAGUE More informationQuantity required : 1 |
||||||
|
5 |
GU32634111 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
GU32657510 - TUBE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
7 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
9 |
AP8152291 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
10 |
GU95008308 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
GU31659181 - KIT PLAQUETTES More informationQuantity required : 1 |
||||||
|
12 |
GU31659281 - PURGE+CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
13 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300 More informationQuantity required : 2 |
||||||
|
14 |
GU96451316 - VIS SANS TETE More informationQuantity required : 2 |
||||||
|
15 |
AP8134167 - PLAQUETTE TUYAU FREIN; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
AP8150026 - ECROU More informationQuantity required : 2 |
||||||
|
16 |
AP8150026 - ECROU More informationQuantity required : 2 |
||||||
|
17 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 1 |
