Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS LC 2002 DERBI
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

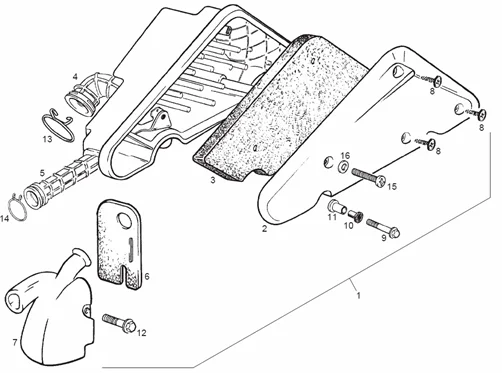

Moteur : 17 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1129/ATLANTIS_LC_2002_DERBI_17.png)
1 |
00G01809541 - ENS. BOITIER DE FILTRE More informationQuantity required : 1 |
||||||
|
2 |
00G00501771 - COUVERCLE BOITE FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/9/img/64079.jpg)
3 |
AIR FILTER"PIAGGIO GENUINE PART" 100 DIESIS -00G03202251- More informationQuantity required : 1 |
||||||
|
4 |
00G03203261 - TUYAU D'ADMISSION More informationQuantity required : 1 |
||||||
|
5 |
00G03206491 - TUBE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
5 |
00G03208491 - TUBE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
6 |
00G06800511 - PROTECTEUR ARRIVEE AIR VARIATE More informationQuantity required : 1 |
||||||
|
7 |
00G06800341 - CHAMBRE DRAINAGE TUBE D'ASP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/3/img/63683.jpg)
8 |
00011051801 - VIS TARAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
9 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
||||||
|
10 |
00G06301201 - DOUILLE SILENT.FIX.BOIT.FILT. More informationQuantity required : 1 |
||||||
|
11 |
00G04901261 - SILENTBLOC FIX.BOITIER FILTRE More informationQuantity required : 1 |
||||||
|
12 |
00G03600991 - BOULON SERRAGE TURBINE H.(6X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
13 |
CLAMP FOR AIRBOX JUNCTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G03204272- More informationQuantity required : 1 |
||||||
|
14 |
00G03205271 - RESSORT FIX. TUBE D'ASPIRAT. More informationQuantity required : 1 |
||||||
|
14 |
00G06302581 - RESSORT FIX. TUBE D'ASPIRAT. More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
16 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
