Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS LC 2002 DERBI
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

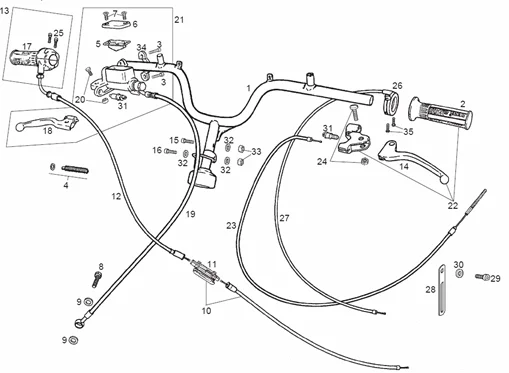

Guidon/direction : 6 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1129/ATLANTIS_LC_2002_DERBI_6.png)
1 |
00G00907011A - SOUS-ENSEMBLE GUIDON More informationQuantity required : 1 |
||||||
|
2 |
00F00930071 - IMPUGNATURA NEE GAZ More informationQuantity required : 1 |
||||||
|
3 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
|
4 |
00H02101811 - R-ENSEM.KIT REPAR. POMPE SENDA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/5/1/img/64651.jpg)
5 |
FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/4/8/img/64648.jpg)
6 |
FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191- More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
8 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
9 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 1 |
||||||
|
10 |
00G00905891 - SOUS-ENS. CABLE-GAINE AR.GAZ H More informationQuantity required : 1 |
||||||
|
11 |
00G00900861 - BOITE DE CONNEXION CABLES GAZ More informationQuantity required : 1 |
||||||
|
12 |
00G00906171 - ENSEMBLE CABLE GAINE GAZ More informationQuantity required : 1 |
||||||
|
13 |
00G00906081 - ENSEMBLE POIGNEE GAZ More informationQuantity required : 1 |
||||||
|
14 |
00G00900291 - LEVIER DE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/2/0/img/63620.jpg)
15 |
00002084011 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
16 |
00004184500 - VIS More informationQuantity required : 1 |
||||||
|
17 |
00F00930091 - CAOUT. DE PIGNEE GAZ More informationQuantity required : 1 |
||||||
|
18 |
00G00901201 - MANETTE DU FREIN AVANT More informationQuantity required : 1 |
||||||
|
19 |
00G00905751 - R-ENS.TUYAU LIQ.FREINS AVANT H More informationQuantity required : 1 |
||||||
|
20 |
00F05800021 - VIS AVEC ECROU More informationQuantity required : 1 |
||||||
|
21 |
FRONT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00G02102081- More informationQuantity required : 1 |
||||||
|
22 |
00G02106611 - ENS. PORTE-MANETTE GAUCHE More informationQuantity required : 1 |
||||||
|
23 |
00G00904431 - SOUS-ENS.CABLE-GAINE FREIN AR. More informationQuantity required : 1 |
||||||
|
24 |
00G00900211 - R-ENSEMB.VIS ARTICULATION MANE More informationQuantity required : 1 |
||||||
|
25 |
00F00901151 - VIS FIXATION COUVRE POIGNEE GA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
26 |
CHOKE CONTROL "PIAGGIO GENUINE PART" APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR -AP8212529- More informationQuantity required : 1 |
||||||
|
27 |
00G00901651 - CABLE ET GAINE AIR. More informationQuantity required : 1 |
||||||
|
28 |
00G03702181 - BRIDE FIX. TUYAU HUILE POMPE-B More informationQuantity required : 1 |
||||||
|
29 |
00004061600 - VIS More informationQuantity required : 1 |
||||||
|
30 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/0/img/63870.jpg)
31 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006 -00D01000701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
32 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
33 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/6/img/63886.jpg)
34 |
HALF CLAMP- FOR FRONT BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 20006>2010 -00D02100901 More informationQuantity required : 1 |
||||||
|
35 |
|
