Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2004-2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

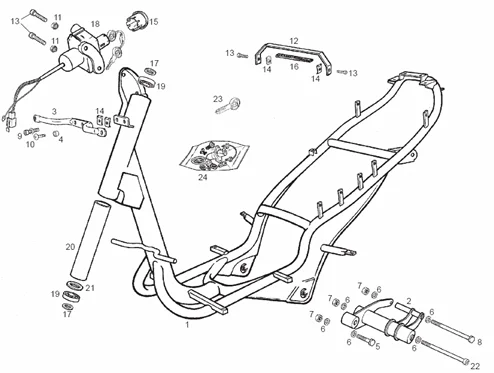

Châssis - parties plastiques - carrosseries : 1 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1024/Atlantis_50_4T_E2_2004-2006_(EMEA)_1.png)
1 |
00G01929601 - CADRE COMPLET More informationQuantity required : 1 |
||||||
|
2 |
00G04807961 - ENSEM.SUP.MOTEUR A/SILENTB. More informationQuantity required : 1 |
||||||
|
3 |
00G04804891 - SUPPORT More informationQuantity required : 1 |
||||||
|
4 |
00F01500171 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
6 |
WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
7 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 1 |
||||||
|
8 |
00G02501271 - VIS TETE CREUSE 10M150X45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
9 |
00D05910081 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
10 |
323990 - TENDEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
11 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
12 |
00G01405301 - S-ENS.PONT FIX. PORTE-PAQ. More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
15 |
IGNITION SWITCH COVER "PIAGGIO GENUINE PART" PIAGGIO 50 DIESIS -00G01500021- More informationQuantity required : 1 |
||||||
|
16 |
00G05700101 - BUTEE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/2/img/63672.jpg)
17 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00008902630 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/3/9/img/64139.jpg)
18 |
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 100 DIESIS -00G05900331- More informationQuantity required : 1 |
||||||
|
19 |
00057000500 - COUSSINET 6005 25-47-12 2RS More informationQuantity required : 1 |
||||||
|
20 |
00G06302401 - TUBE SEP. ROULEMENT DIRECTION More informationQuantity required : 1 |
||||||
|
21 |
00G06500451 - RONDELLE COUSSINET TUBE DIRECT More informationQuantity required : 1 |
||||||
|
22 |
00G03001271 - BOULON DE SERRAGE MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/0/9/img/63909.jpg)
23 |
00F01810411 - CLEF More informationQuantity required : 1 |
||||||
|
24 |
00G05904251 - ENS.KIT SERRURES More informationQuantity required : 1 |
