Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2004-2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

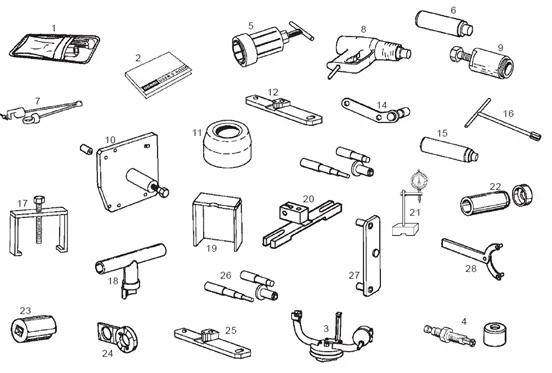

Accessoires : 29 ACCESSOIRES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1024/Atlantis_50_4T_E2_2004-2006_(EMEA)_29.png)
1 |
00G05105561 - SAC A OUTILS COMPLET More informationQuantity required : 1 |
||||||
|
2 |
00G05170121 - MANUEL D'INSTRUCTIONS More informationQuantity required : 1 |
||||||
|
3 |
BASE |
||||||
|
4 |
001467Y - EXTRACTEUR More informationQuantity required : 1 |
||||||
|
5 |
004499Y - EXTRACTEUR CPLT More informationQuantity required : 1 |
||||||
|
6 |
020080Y - PUNZONE More informationQuantity required : 1 |
||||||
|
7 |
OUTIL |
||||||
|
8 |
FOURNEAU |
||||||
|
9 |
020162Y - EXTRACTEUR VM SFERA More informationQuantity required : 1 |
||||||
|
10 |
020163Y - EXTRACTEUR CARTER More informationQuantity required : 1 |
||||||
|
11 |
020164Y - GAINE MONTAGE POULIE More informationQuantity required : 1 |
||||||
|
12 |
020451Y - OUTIL More informationQuantity required : 1 |
||||||
|
13 |
020166Y - OUTIL PISTON More informationQuantity required : 1 |
||||||
|
14 |
020167Y - OUTIL More informationQuantity required : 1 |
||||||
|
15 |
020168Y - POUSSOIR More informationQuantity required : 1 |
||||||
|
16 |
020169Y - CLE More informationQuantity required : 1 |
||||||
|
17 |
020361Y - POINCON More informationQuantity required : 1 |
||||||
|
18 |
DEMONTAGE RESSORT KICK |
||||||
|
19 |
020265Y - BASE More informationQuantity required : 1 |
||||||
|
20 |
SUPPORT COMPARATEUR |
||||||
|
21 |
TOOL FOR STALKER -020335Y- More informationQuantity required : 1 |
||||||
|
22 |
020340Y - OUTIL More informationQuantity required : 1 |
||||||
|
23 |
020341Y - OUTIL More informationQuantity required : 1 |
||||||
|
24 |
OUTIL |
||||||
|
25 |
020451Y - OUTIL More informationQuantity required : 1 |
||||||
|
26 |
OUTIL |
||||||
|
27 |
020346Y - OUTIL ET2 BLOC VOLAN More informationQuantity required : 1 |
||||||
|
28 |
020565Y - OUTIL More informationQuantity required : 1 |
