Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE

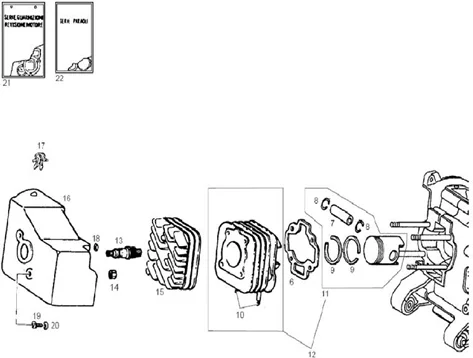

Groupe cylindre-piston-axe
Search
CYLINDER BASE GASKET "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LIBERTY, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR -286810-

6
P2R reference P2R reference 66176
Maker reference Maker reference 286810

CYLINDER BASE GASKET "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LIBERTY, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR -286810-

More information

Quantity required : 0
PISTON PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50cc --239404-

7
P2R reference P2R reference 65982
Maker reference Maker reference 239404

PISTON PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC --239404-

More information

Quantity required : 0
STOP RING FOR PISTON "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 cc 2 stroke -239455-

8
P2R reference P2R reference 65983
Maker reference Maker reference 239455

STOP RING FOR PISTON "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE -239455-

More information

Quantity required : 0
PISTON RING- "PIAGGIO GENUINE PART" 50 TYPHOON 1995>, NRG 1998>, ZIP 2000>, VESPA LX 2005>, LIBERTY 1998>,FLY 2 stroke 2005>/APRILIA 50 SR 2010>/GILERA 50 STALKER 1997>, RUNNER 1997> (VENDU A L UNITE) -825416-

9
P2R reference P2R reference 68541
Maker reference Maker reference 825416

PISTON RING- "PIAGGIO GENUINE PART" 50 TYPHOON 1995>, NRG 1998>, ZIP 2000>, VESPA LX 2005>, LIBERTY 1998>,FLY 2 STROKE 2005>/APRILIA 50 SR 2010>/GILERA 50 STALKER 1997>, RUNNER 1997> (VENDU A L UNITE) -825416-

More information

Quantity required : 0
EXHAUST STUD BOLT M6 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -239397-

10
P2R reference P2R reference 65981
Maker reference Maker reference 239397

EXHAUST STUD BOLT M6 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -239397-

More information

Quantity required : 0
825182 - GR.PISTON 1ERE MAJ TYPHOON EX 484409

11
P2R reference P2R reference 166942
Maker reference Maker reference 825182

825182 - GR.PISTON 1ERE MAJ TYPHOON EX 484409

More information

Quantity required : 0
825185 - GR.PISTON 2M EX 484415

11
P2R reference P2R reference 68521
Maker reference Maker reference 825185

825185 - GR.PISTON 2M EX 484415

More information

Quantity required : 0
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-4(P) -4878020004-

11
P2R reference P2R reference 66756
Maker reference Maker reference 4878020004

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-4(P) -4878020004-

More information

Quantity required : 0
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-2(N) -4878020002-

11
P2R reference P2R reference 66754
Maker reference Maker reference 4878020002

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1995>, TYPHOON 1995>, NRG 1997>, LIBERTY 2000>, FLY 2005>, VESPA LX 2005>/GILERA 50 RUNNER 1997>, STALKER 1997>/APRILIA 50 SR 2003> CAT-2(N) -4878020002-

More information

Quantity required : 0
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 stroke 2005>, LIBERTY 2 stroke 1998>, NRG 1998>, VESPA LX 2 stroke, VESPA-S 2 stroke 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-3(O) -4878020003-

11
P2R reference P2R reference 66755
Maker reference Maker reference 4878020003

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 STROKE 2005>, LIBERTY 2 STROKE 1998>, NRG 1998>, VESPA LX 2 STROKE, VESPA-S 2 STROKE 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-3(O) -4878020003-

More information

Quantity required : 0
PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 stroke 2005>, LIBERTY 2 stroke 1998>, NRG 1998>, VESPA LX 2 stroke, VESPA-S 2 stroke 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-1(M) -4878020001-

11
P2R reference P2R reference 66753
Maker reference Maker reference 4878020001

PISTON "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2 STROKE 2005>, LIBERTY 2 STROKE 1998>, NRG 1998>, VESPA LX 2 STROKE, VESPA-S 2 STROKE 2007>/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012> CAT-1(M) -4878020001-

More information

Quantity required : 0
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, TYPHOON, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR (LIVRE SANS JOINT) -831116-

12
P2R reference P2R reference 68946
Maker reference Maker reference 831116

CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, TYPHOON, VESPA LX/GILERA 50 STALKER/APRILIA 50 SR (LIVRE SANS JOINT) -831116-

More information

Quantity required : 0
SPARK PLUG "PIAGGIO GENUINE PART" CHAMPION RN3C "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -438075-

13
P2R reference P2R reference 66531
Maker reference Maker reference 438075

SPARK PLUG "PIAGGIO GENUINE PART" CHAMPION RN3C "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -438075-

More information

Quantity required : 0
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 stroke -288531-

14
P2R reference P2R reference 66194
Maker reference Maker reference 288531

NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE -288531-

More information

Quantity required : 0
CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 stroke -2865344-

15
P2R reference P2R reference 66174
Maker reference Maker reference 2865344

CYLINDER HEAD- "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50 CC 2 STROKE -2865344-

More information

Quantity required : 0
CYLINDER AIR SHROUD "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50cc 2 stroke -845692-

16
P2R reference P2R reference 69364
Maker reference Maker reference 845692

CYLINDER AIR SHROUD "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTERS 50CC 2 STROKE -845692-

More information

Quantity required : 0
140435 - RESSORT

17
P2R reference P2R reference 65739
Maker reference Maker reference 140435

140435 - RESSORT

More information

Quantity required : 0
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

18
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 0
1A003108 - VIS

19
P2R reference P2R reference 109085
Maker reference Maker reference 1A003108

1A003108 - VIS

More information

Quantity required : 0
078307 - RONDELLE

20
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

078307 - RONDELLE

More information

Quantity required : 0
154873 - POCHETTE JOINTS

21
P2R reference P2R reference 65753
Maker reference Maker reference 154873

154873 - POCHETTE JOINTS

More information

Quantity required : 0
GASKET KIT FOR ENGINE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SR -498337-

22
P2R reference P2R reference 66969
Maker reference Maker reference 498337

GASKET KIT FOR ENGINE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, VESPA LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SR -498337-

More information

Quantity required : 0
