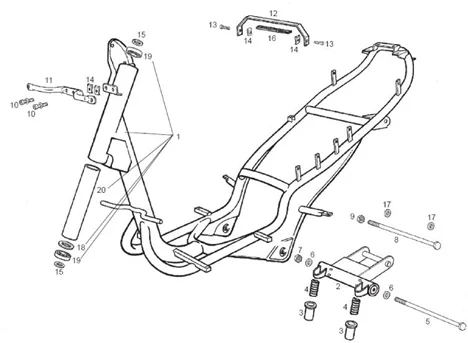

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1025/Atlantis_50_2T_Bullet_2010_02.01.png)
1 |
00G01925601 - CADRE COMPLET More informationQuantity required : 0 |
||||||
|
2 |
00G048059615 - ENSEM.SUP.MOTEUR A/SILENTB. More informationQuantity required : 0 |
||||||
|
3 |
00G06300571 - PROTEC.RESSORT AMORT.SUPP.MOTE More informationQuantity required : 0 |
||||||
|
4 |
00G01501511 - RESSORT AMORTISSEUR SUPPORT MO More informationQuantity required : 0 |
||||||
|
5 |
00G03001271 - BOULON DE SERRAGE MOTEUR More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/7/img/63597.jpg)
6 |
00000031100 - RONDELLE More informationQuantity required : 0 |
||||||
|
8 |
00G02500271 - VIS TETE CREUSE 10M150X45D912 More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
9 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/5/img/63895.jpg)
10 |
00D05910081 - VIS More informationQuantity required : 0 |
||||||
|
11 |
00G04802891A - SOPTE.ESCUDO FRONTAL ATLANTIS (C) More informationQuantity required : 0 |
||||||
|
12 |
00G01403301 - S-ENS.PONT FIX. PORTE-PAQ. More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/2/img/63672.jpg)
15 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00008902630- More informationQuantity required : 0 |
||||||
|
16 |
00G06200151 - BUTÉE RÉSERVOIR HUILE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
17 |
WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001- More informationQuantity required : 0 |
||||||
|
18 |
00G06500451 - RONDELLE COUSSINET TUBE DIRECT More informationQuantity required : 0 |
||||||
|
19 |
00057000500 - COUSSINET 6005 25-47-12 2RS More informationQuantity required : 0 |
||||||
|
20 |
00G06302401 - TUBE SEP. ROULEMENT DIRECTION More informationQuantity required : 0 |
