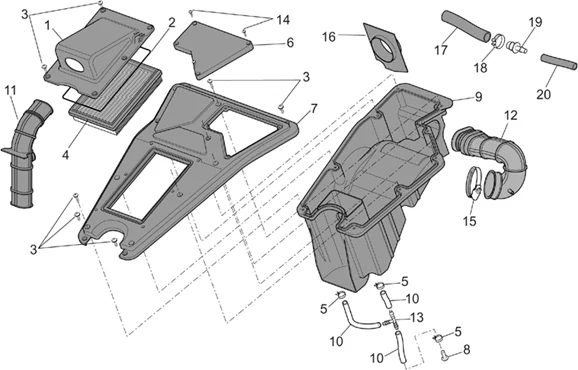

Chassis : 28.24 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.24.PNG)
1 |
AP8149438 - COUVERCLE FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
2 |
AP8120615 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
3 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 21 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/0/img/71220.jpg)
4 |
AIR FILTER"PIAGGIO GENUINE PART" MOTO-GUZZI 750 V-7 2008>, BREVA 2003>2009, NEVADA 2004>/APRILIA 500 ATLANTIC 2001>2004, 500 SCARABEO 2003>2006 -AP8104242 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
5 |
AP8101595 - COLLIER More informationQuantity required : 3 |
||||||
|
6 |
AP8158192 - COUVERCLE; More informationQuantity required : 1 |
||||||
|
7 |
AP8149437 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
8 |
AP8120876 - BOUCHON DE FERMETURE More informationQuantity required : 2 |
||||||
|
9 |
AP8149428 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
9 |
Base corps filtre |
||||||
|
10 |
AP8144038 - TUYAU ESSENCE 6X10 More informationQuantity required : 2 |
||||||
|
11 |
AP8144442 - DURITE D'ADMISSION More informationQuantity required : 1 |
||||||
|
12 |
Manchon |
||||||
|
13 |
AP8144303 - "RACCORD EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
15 |
AP8102401 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
AP8158320 - PROTECTION; More informationQuantity required : 1 |
||||||
|
17 |
TUYAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
18 |
AP8201169 - COLLIER CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/8/img/71188.jpg)
19 |
AP8102576 - RACCORD A DEUX VOIES More informationQuantity required : 1 |
||||||
|
20 |
890499 - TUYAU ESSENCE D.8X13 More informationQuantity required : 1 |
