Vehicle Exploded View - APRILIA ATLANTIC 500 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

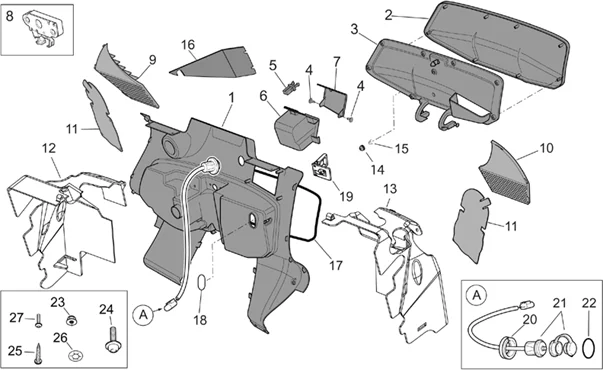

Chassis : 28.09 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/760/Atlantic_500_2001-2004_28.09.PNG)
1 |
AP8149470 - TABLIER INT. NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8168489 - TABLIER INT. NOIR; More informationQuantity required : 1 |
||||||
|
2 |
AP8149474 - ABATT. PORTE-OBJETS NOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8149466 - SUPPORT ABATT.PORTE-OBJETS; More informationQuantity required : 1 |
||||||
|
4 |
AP8102600 - BOUCHON More informationQuantity required : 2 |
||||||
|
5 |
AP8104429 - BOUCHON DE FERMETURE More informationQuantity required : 1 |
||||||
|
6 |
AP8158441 - VIDE-POCHES; More informationQuantity required : 1 |
||||||
|
7 |
AP8149475 - PETIT COUVERCLE; More informationQuantity required : 1 |
||||||
|
8 |
AP8102913 - PL.FIX.SELLE PASS. More informationQuantity required : 1 |
||||||
|
9 |
AP8149435 - COUVERCLE CORPS FILTRE DROITE; More informationQuantity required : 1 |
||||||
|
10 |
AP8149436 - COUVERCLE CORPS FILTRE GAUCHE; More informationQuantity required : 1 |
||||||
|
11 |
AP8158793 - PROTECTION; More informationQuantity required : 2 |
||||||
|
12 |
AP8158760 - CONVOYEUR D; More informationQuantity required : 1 |
||||||
|
13 |
AP8158761 - CONVOYEUR G; More informationQuantity required : 1 |
||||||
|
14 |
Caoutchouc |
||||||
|
15 |
Ressort |
||||||
|
16 |
AP8158549 - GRILLE VIDE-POCHES; More informationQuantity required : 1 |
||||||
|
17 |
890518 - JOINT More informationQuantity required : 1 |
||||||
|
18 |
AP8144537 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/5/img/72135.jpg)
19 |
HELMET HOOK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8201534 More informationQuantity required : 1 |
||||||
|
20 |
AP8163327 - BUSSOLA CAVO INTERFONO More informationQuantity required : 1 |
||||||
|
21 |
AP8127390 - CAVO PROLUNGA INTERFONO PILOTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/9/img/49589.jpg)
22 |
AP8144048 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
23 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
24 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8152338 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
25 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
26 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
27 |
SCREW - BODY PARTS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO GUZZI M3X12 -AP8152334 More informationQuantity required : 4 |
