Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape Web 50 2T 2001-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

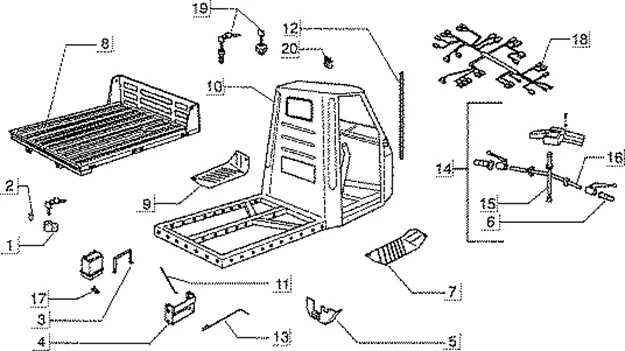

Châssis : T4 SUPPORT POT-ÉLÉMENTS CONSTITUTIFS DU CHÂSSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/322/Ape_Web_50_2T_2001-2008_T4.PNG)
1 |
569534 - BARILLET More informationQuantity required : 1 |
||||||
|
2 |
569544 - SCONTRO SERRAT More informationQuantity required : 1 |
||||||
|
4 |
569536 - SUPPORT GAUCHE More informationQuantity required : 1 |
||||||
|
5 |
264103 - TOLE PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/7/img/65957.jpg)
6 |
RIGHT HAND GRIP "PIAGGIO GENUINE PART" 50 FREE, ZIP, SI-MIX -229741- More informationQuantity required : 2 |
||||||
|
7 |
569415 - PLANCHER D TM 50 More informationQuantity required : 1 |
||||||
|
8 |
569465 - PIANALE CON P. More informationQuantity required : 1 |
||||||
|
9 |
569414 - PLANCHER More informationQuantity required : 1 |
||||||
|
11 |
569533 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
569542 - BORDURE TOIT ARR More informationQuantity required : 1 |
||||||
|
14 |
2679035 - GUIDON TM 50 More informationQuantity required : 1 |
||||||
|
15 |
261476 - POIGNEE CV More informationQuantity required : 1 |
